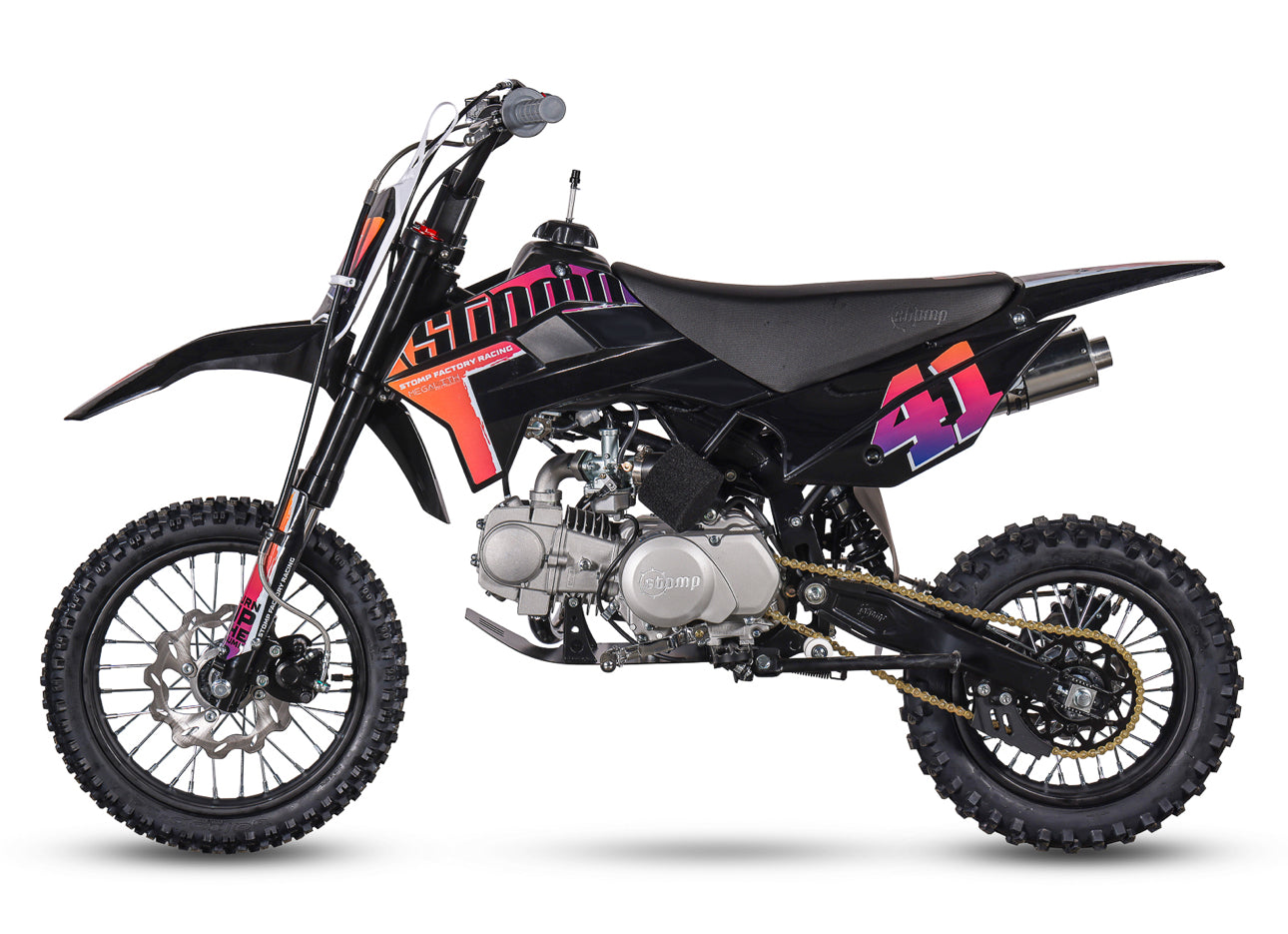

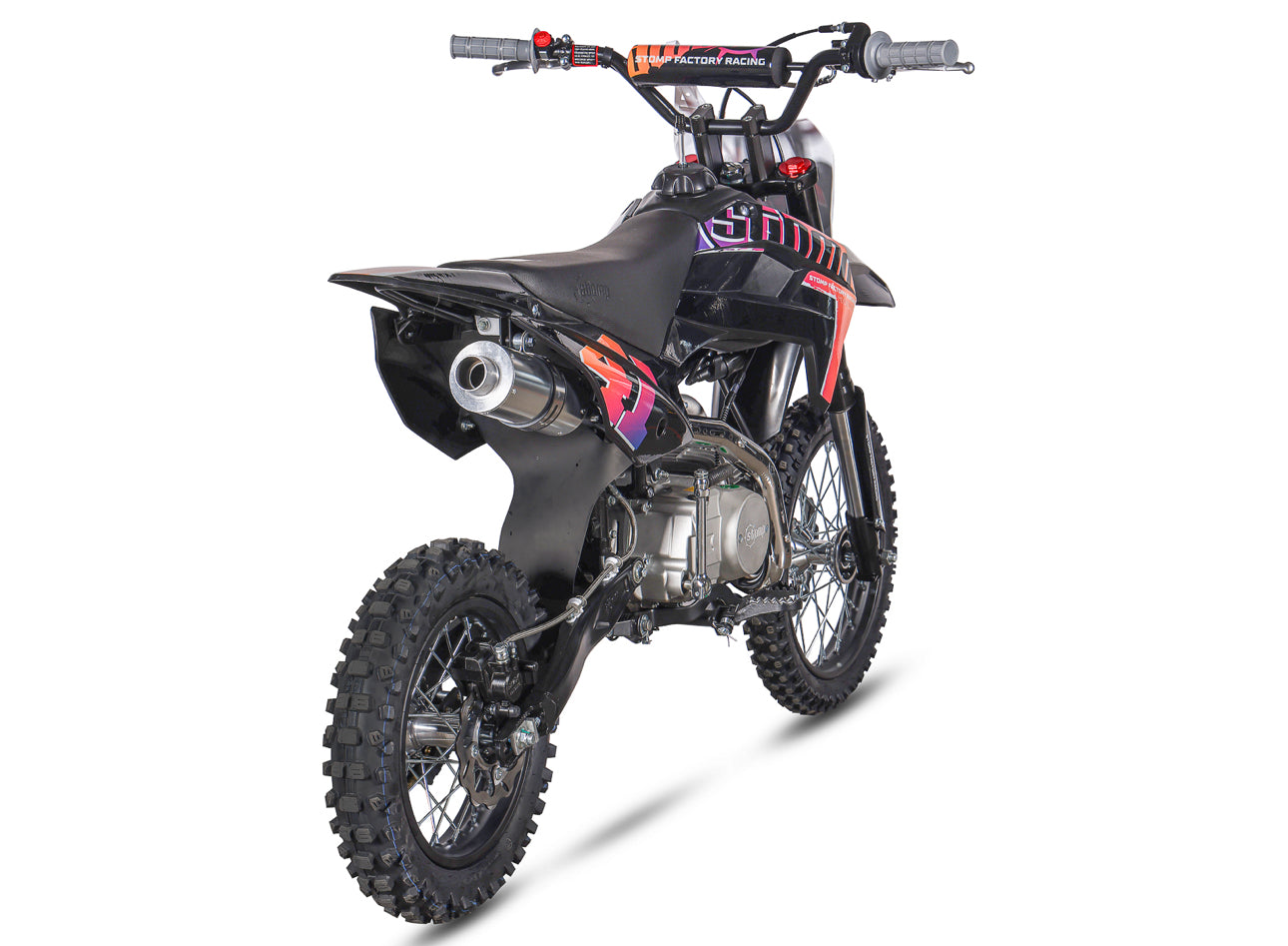

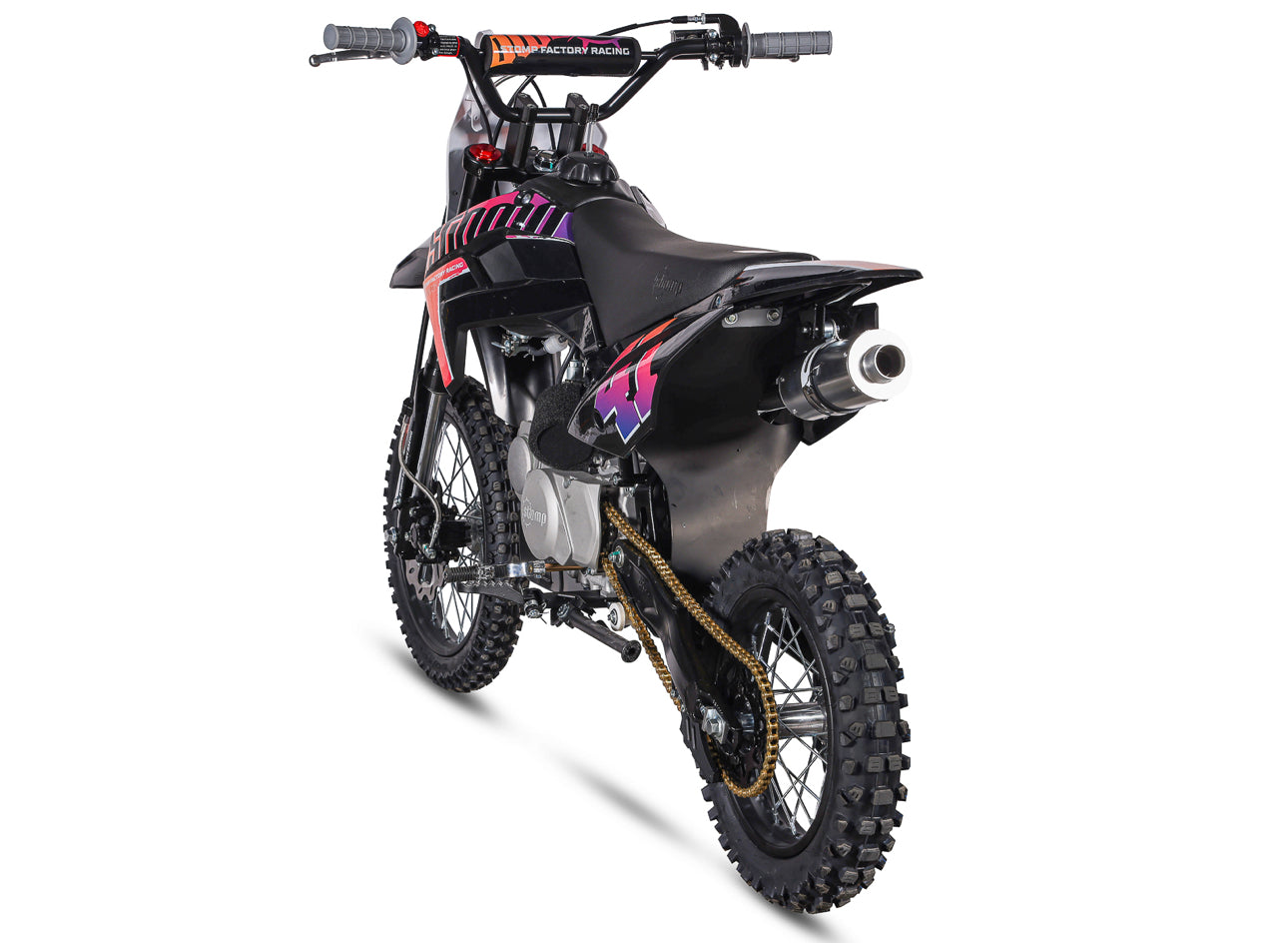

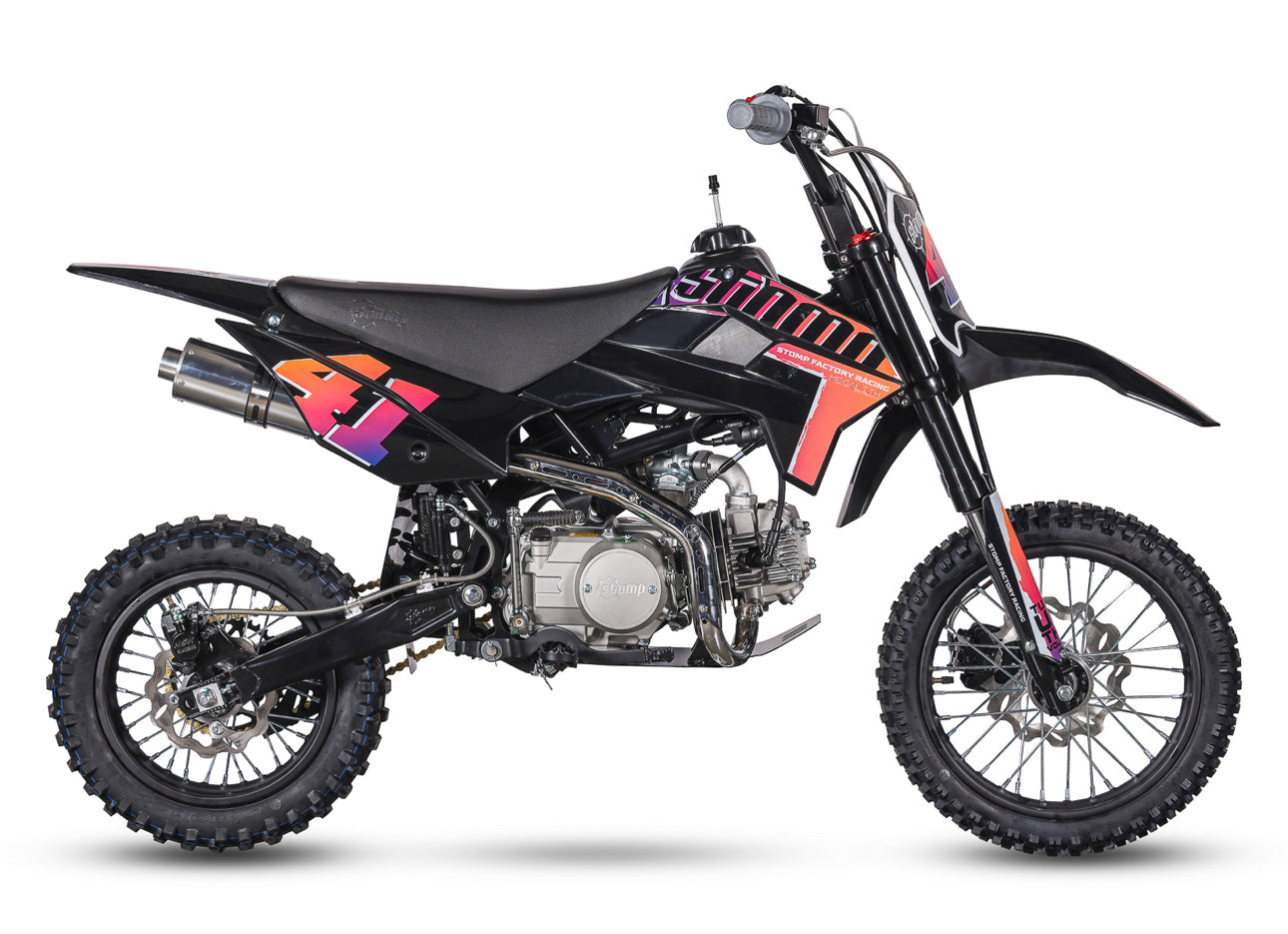

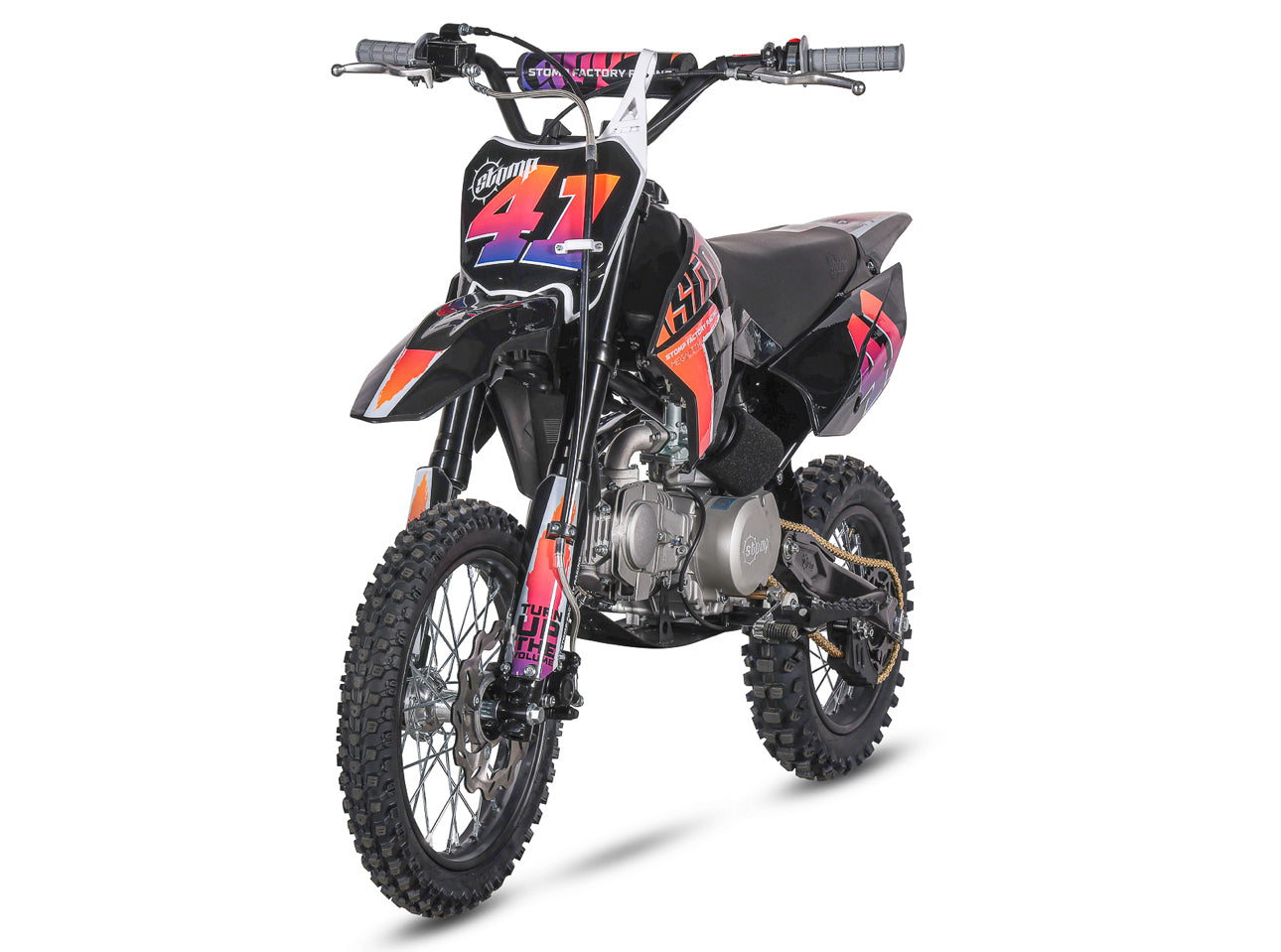

SuperStomp 120r Off Road Pit Bike

Stomp SuperStomp 120R Off-Road Pit Bike

120CC 4-STROKE. 4-SPEED MANUAL. 14”/12” WHEELS. USD FORKS. RACE-READY CHASSIS. 🏁🔥

The Stomp SuperStomp 120R is one of the bikes that helped establish Stomp as a name in the pit-bike world.

Now updated with the SDG2 chassis, Detroit plastics, Stomp Race graphics and upgraded PRO footpegs, the SuperStomp 120R combines a punchy 119.6cc 4-stroke engine with a compact but serious pit-bike platform.

With a 4-speed manual gearbox, wet 3-disc clutch, 660mm USD forks, adjustable rear shock, hydraulic wavey disc brakes and 14”/12” wheels, the 120R has the specification you’d expect from a proper Stomp pit bike.

It’s compact enough to remain approachable, but with its 750mm seat height, 250mm ground clearance and 64kg dry weight, the 120R has the proportions and equipment to deliver plenty of off-road fun.

⸻

⚡ Key Features

• 🔥 119.6cc YX120 4-stroke engine
• 🌬️ Air-cooled engine
• ⚙️ 4-speed manual gearbox
• 🔄 1-N-2-3-4 gear pattern
• 🕹️ Wet 3-disc clutch
• 💨 22mm Nibbi carburettor
• 💪 5.1kW @ 8,000rpm
• 💥 8.5Nm @ 5,000rpm
• 🔑 Kick start
• ⚡ CDI ignition
• 💥 660mm USD front forks
• 💥 270mm adjustable-preload rear shock
• 🏗️ Lightweight steel spine frame
• 💪 CRF70-style rear subframe
• 💪 390mm steel swingarm
• 🛑 Hydraulic front & rear disc brakes
• 💥 210mm front wavey disc
• 💥 180mm rear wavey disc
• 🛞 14” front / 12” rear
• 🏁 60/100-14 front tyre
• 🏁 80/100-12 rear tyre
• 💪 Upgraded PRO footpegs
• 🏁 Stomp Race graphics
• ⛽ 5.5L fuel tank
• 📏 Approx. 750mm seat height
• 📏 Approx. 250mm ground clearance
• ⚖️ Approx. 64kg dry weight
• ⛓️ 418 chain final drive

⸻

🔥 119.6cc YX120 4-Stroke Engine

At the heart of the SuperStomp 120R is the proven YX120 4-stroke engine, with a displacement of 119.6cc.

The engine is air-cooled and uses a SOHC 2-valve configuration.

Stomp lists maximum power at:

5.1kW @ 8,000rpm

and maximum torque at:

8.5Nm @ 5,000rpm

The engine is paired with a 22mm Nibbi carburettor, giving the 120R a straightforward mechanical setup that’s easy to understand and maintain.

The 120cc engine also gives the SuperStomp a useful step up from smaller 110cc pit bikes without moving into the considerably more powerful 140cc and 160cc machines.

⸻

⚙️ 4-Speed Manual Gearbox

The SuperStomp 120R uses a 4-speed manual gearbox with the following gear pattern:

1 → N → 2 → 3 → 4

The rider operates the wet 3-disc clutch from the handlebar and selects gears using the foot lever.

This gives the rider full control over the relationship between engine speed and gearing.

The manual transmission allows riders to:

• Select the correct gear for the terrain
• Change up through the gearbox
• Downshift when required
• Use engine braking
• Control engine speed
• Develop proper clutch and gear-changing technique

⸻

🕹️ Full Manual Control

The SuperStomp 120R is designed for riders who are ready for a proper manual pit bike.

If you’re moving up from an automatic or semi-automatic machine, the 120R provides the opportunity to develop full clutch control while keeping the overall bike relatively compact.

Its 120cc engine gives it more performance than an entry-level 110cc machine, while the 14”/12” chassis keeps the bike considerably more compact than the larger 17”/14” big-wheel bikes.

⸻

💥 660mm USD Front Forks

The front suspension uses 660mm USD forks.

The upside-down fork design gives the SuperStomp a proper performance-focused front end, while the 660mm length works with the compact 14”/12” chassis.

The USD forks are paired with the bike’s lightweight steel frame and SDG wheels to provide the front-end platform for off-road riding.

⸻

🔧 Adjustable Rear Shock

At the rear is a 270mm shock with adjustable preload.

The preload adjustment allows the rear suspension to be set according to rider weight and riding conditions.

The shock works with the 390mm steel swingarm and CRF70-style rear subframe to complete the SuperStomp’s compact chassis.

⸻

🛑 Hydraulic Wavey Disc Brakes

The SuperStomp 120R comes equipped with hydraulic disc brakes front and rear.

Front

210mm hydraulic wavey disc

Rear

180mm hydraulic wavey disc

The wavey rotors complement the compact, performance-focused chassis.

As always, brakes should be checked before riding and maintained regularly.

⸻

🛞 14”/12” Pit Bike Wheels

The SuperStomp uses the classic 14” front / 12” rear pit-bike wheel combination.

Front

60/100-14

Rear

80/100-12

The wheels use steel rims with SDG hubs, providing a strong and straightforward wheel setup.

The 14/12 configuration keeps the overall bike compact while maintaining the riding position and ground clearance expected from a proper pit bike.

⸻

🏗️ SDG2 Lightweight Steel Chassis

The SuperStomp 120R has been upgraded with the SDG2 frame, giving the bike a more modern chassis platform.

The frame is paired with:

• Lightweight steel spine frame
• CRF70-style rear subframe
• 390mm steel swingarm
• SDG hubs
• Upgraded PRO footpegs
• Lightweight steel handlebars

The result is a compact chassis that still has the feel and equipment of a serious pit bike.

⸻

🏁 Stomp Race Styling

The SuperStomp 120R gets the full Stomp treatment with Detroit plastics and Stomp Race graphics.

It also features upgraded PRO footpegs, designed to give the rider a solid contact point when standing on the bike.

The attention to detail continues through the polished SDG hubs and Stomp-branded components.

It’s compact, but definitely doesn’t look like a basic entry-level pit bike.

⸻

⛽ 5.5L Fuel Tank

The SuperStomp 120R features a 5.5-litre fuel tank, giving it useful fuel capacity for longer riding sessions.

The air-cooled 119.6cc engine keeps the mechanical setup straightforward, while regular oil, chain and general maintenance checks are essential for reliable operation.

⸻

📏 Compact Pit Bike Dimensions

The SuperStomp 120R has an approximate:

Seat height: 750mm
Ground clearance: 250mm
Wheelbase: 1,150mm
Dry weight: 64kg
Fuel capacity: 5.5L
Front wheel: 14”
Rear wheel: 12”

The 750mm seat height makes rider fit particularly important.

We recommend choosing a bike based on rider height, weight, ability and experience, rather than age alone.

⸻

👤 Is The Stomp SuperStomp 120R Right For You?

The SuperStomp 120R is designed for riders looking for a compact but properly equipped manual pit bike.

Want something smaller and easier to learn on?

The Stomp FXJ 110 Manual provides a compact 110cc platform with 14”/12” wheels and full manual clutch control.

Want a step up in engine capacity?

The SuperStomp 120R gives you 119.6cc, 5.1kW and 8.5Nm, together with a more performance-focused chassis.

Want even more performance?

The Stomp Z3-140 Small Wheel moves up to a 140cc performance engine with approximately 14hp at the rear wheel.

Want a taller big-wheel bike?

The Stomp Z3-140 Big Wheel uses the same 140cc performance platform but moves to 17”/14” wheels and a taller riding position.

Want maximum Stomp pit-bike performance?

The Stomp Z3-160 moves into a 155cc platform producing approximately 17hp at the rear wheel.

If you’re unsure which bike is right for you, contact CMW Bikes before ordering and we’ll help you choose based on rider height, weight, experience and intended use.

⸻

📦 What’s Included?

• Stomp SuperStomp 120R Pit Bike
• User/assembly documentation
• Assembly tools where supplied

Assembly Options

Boxed: Self assembly required

Fully assembled: +£49

The current CMW listing offers the fully assembled option for +£49.

⸻

⚠️ Important Information – Off-Road Use

All vehicles supplied by CMW Bikes are intended for off-road/private-land use only unless specifically stated otherwise.

The SuperStomp 120R is a mechanical petrol motorcycle and requires regular maintenance, inspection and correct setup.

Please ensure:

• Brakes, chain, tyres, bolts and controls are checked regularly
• Engine oil is checked and maintained correctly
• Appropriate protective equipment is worn
• The rider is suitably experienced for a 120cc manual dirt bike
• The bike is checked before every ride
• The vehicle is used responsibly and lawfully
• Permission is obtained from the landowner before riding on private land

⸻

🛠️ Warranty Information

Petrol vehicles include a 30-day replacement parts warranty.

The warranty covers manufacturing faults only and does not cover normal wear and tear, misuse, accident damage or maintenance-related issues.

Warranty exclusions include:

• Chains, belts and split links
• Tyres, tubes and wheels
• Brake components
• Clutches and pull starts
• Fairings and bodywork
• Spark plugs and similar service items
• Other parts subject to normal wear and tear

Customers may be required to provide photographs/videos of faults and fit replacement parts themselves where appropriate.

Technical guidance can be provided.

Nothing in these terms affects your statutory rights under UK consumer law.
