Stomp z3-160

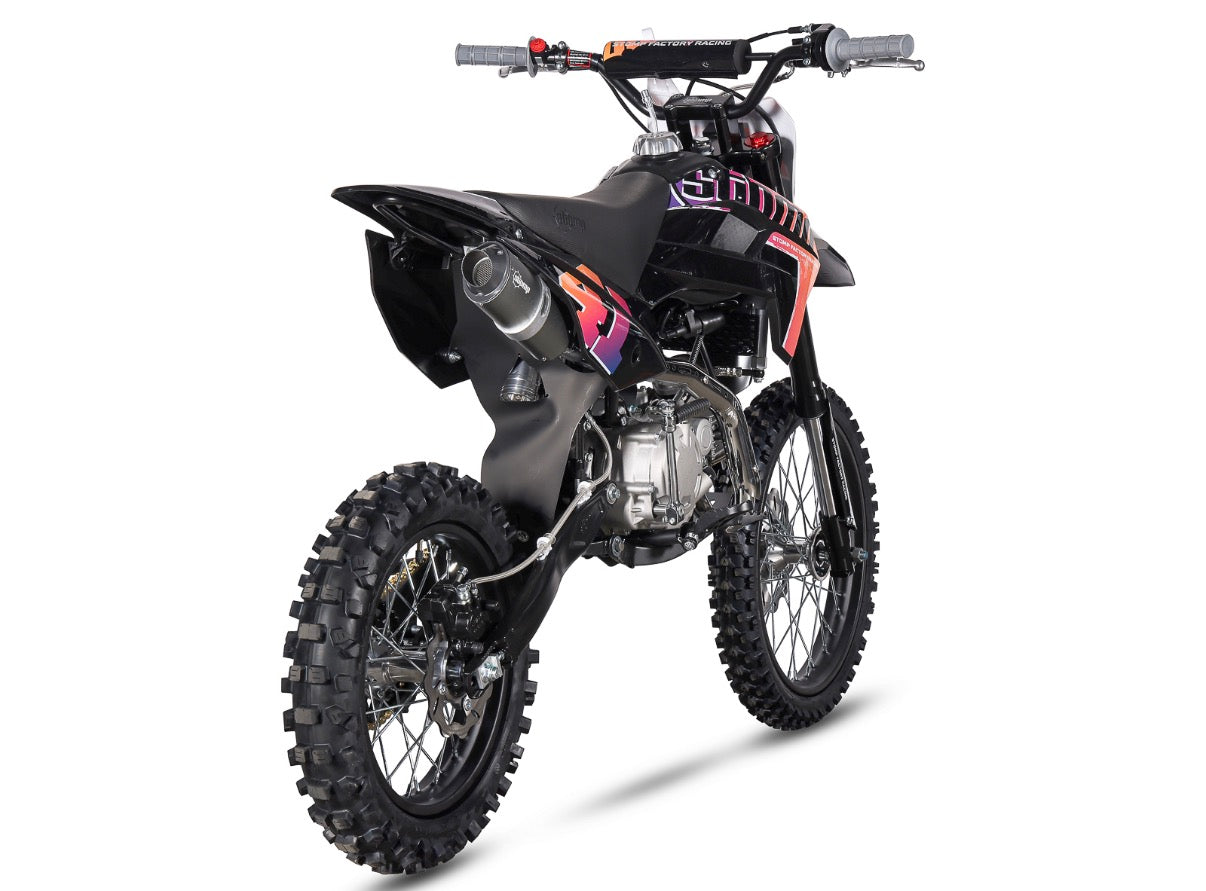

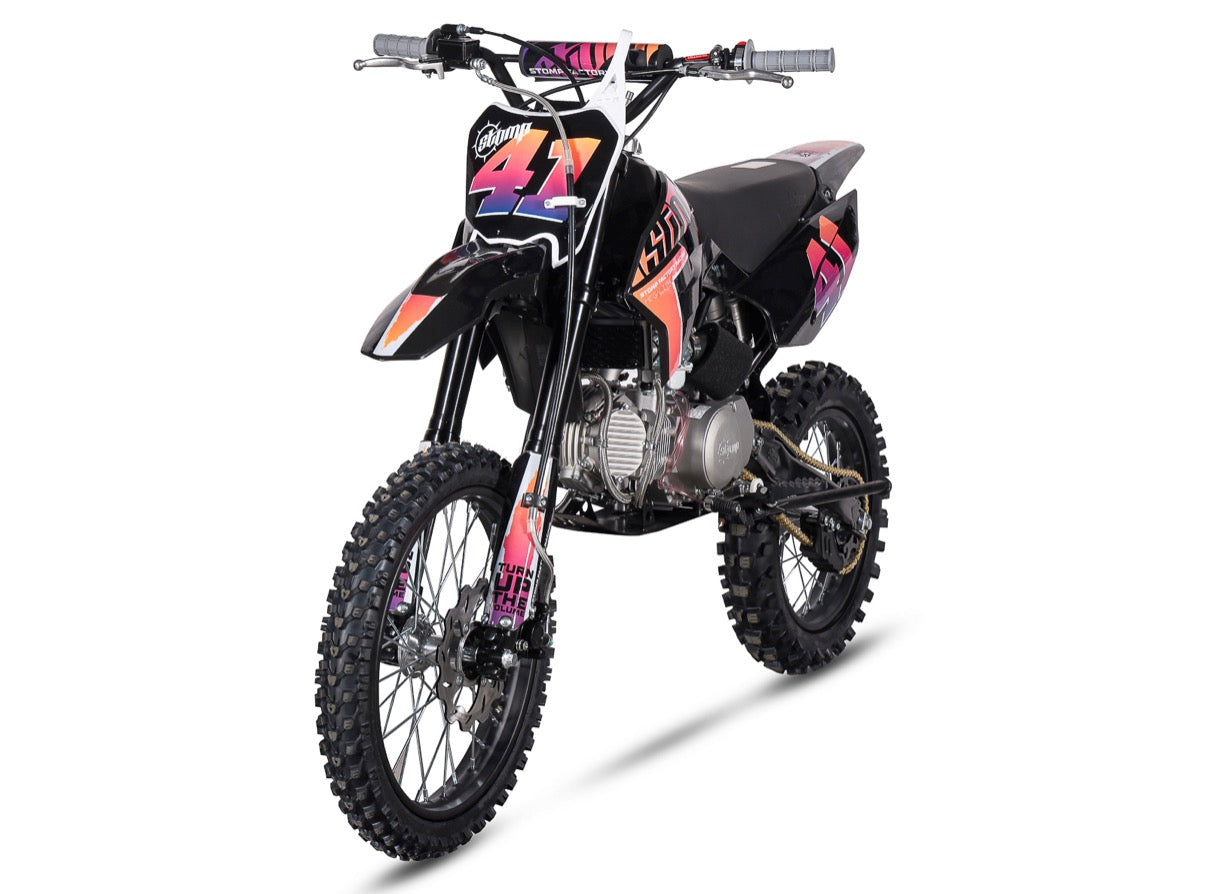

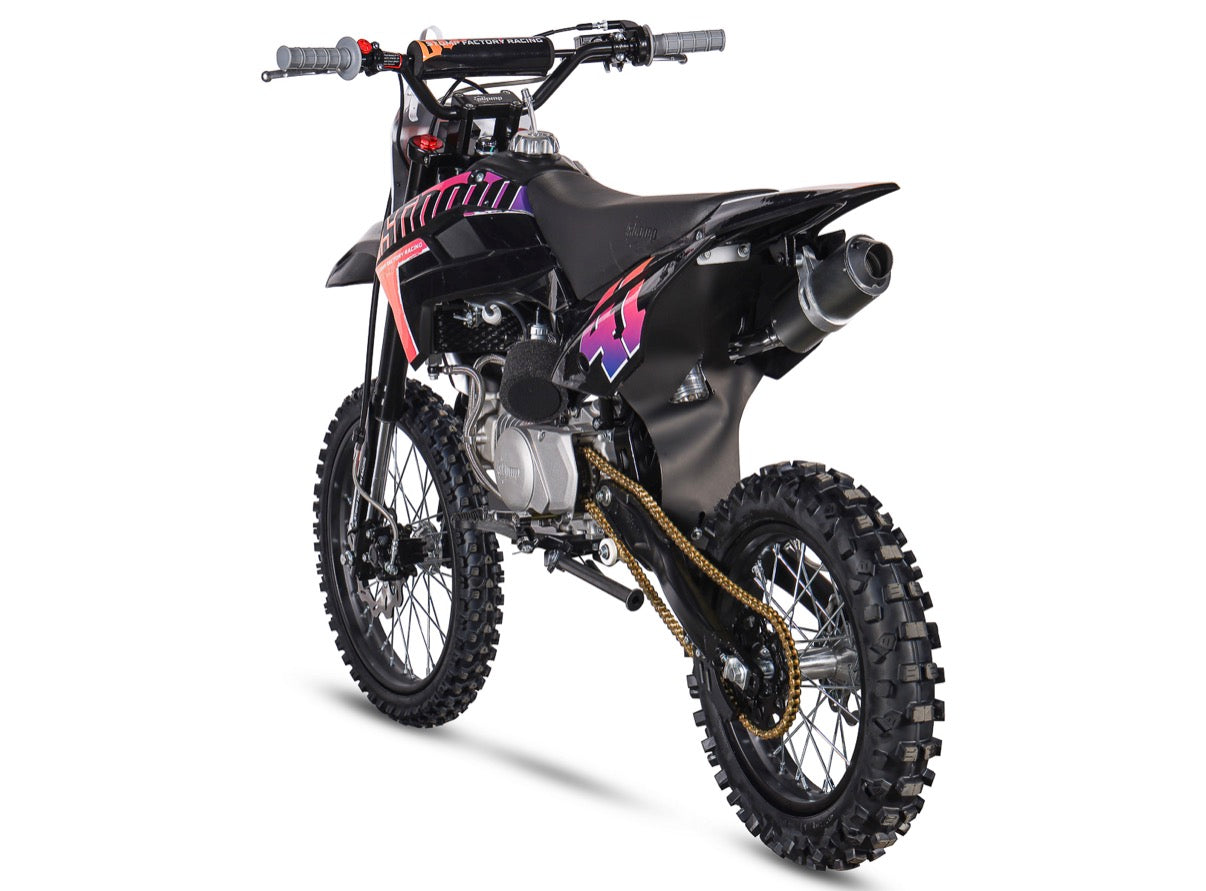

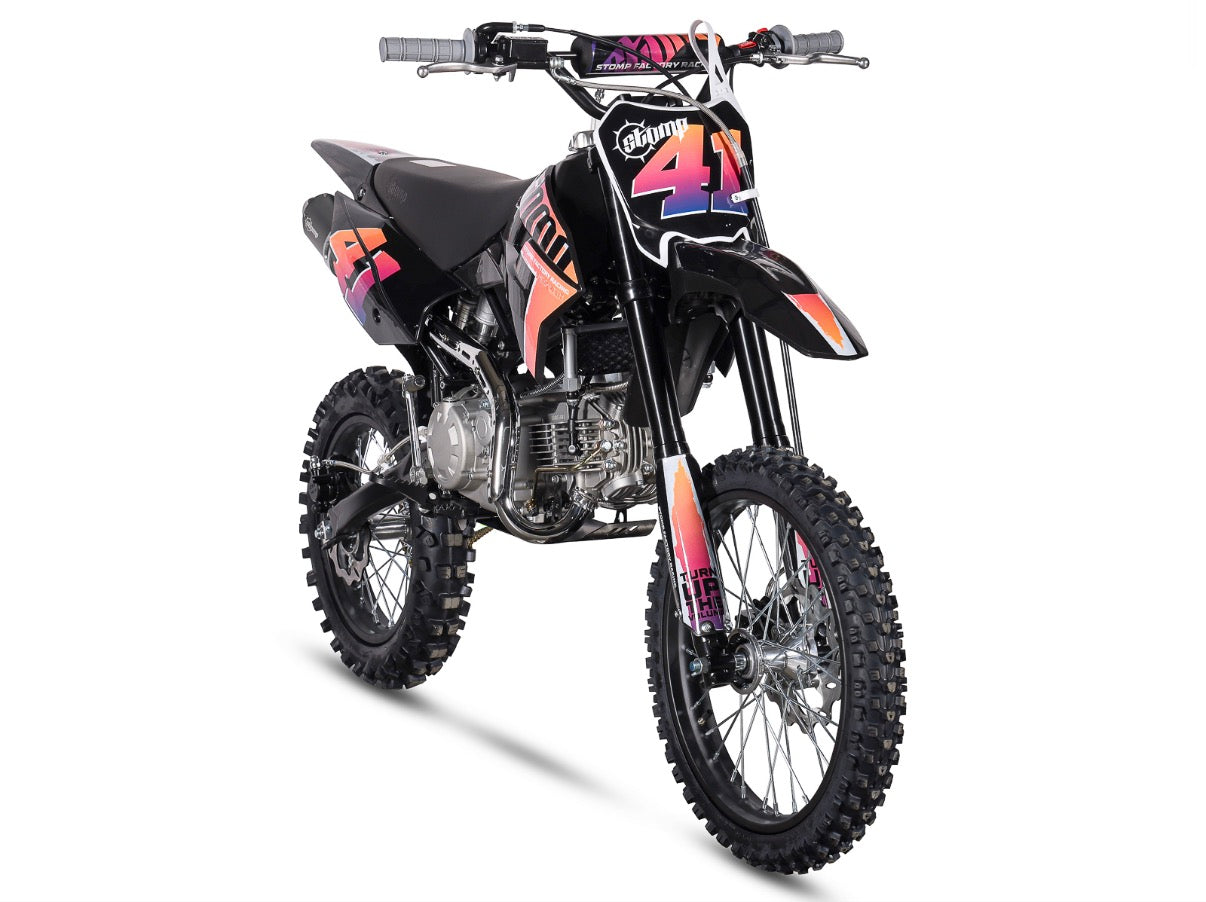

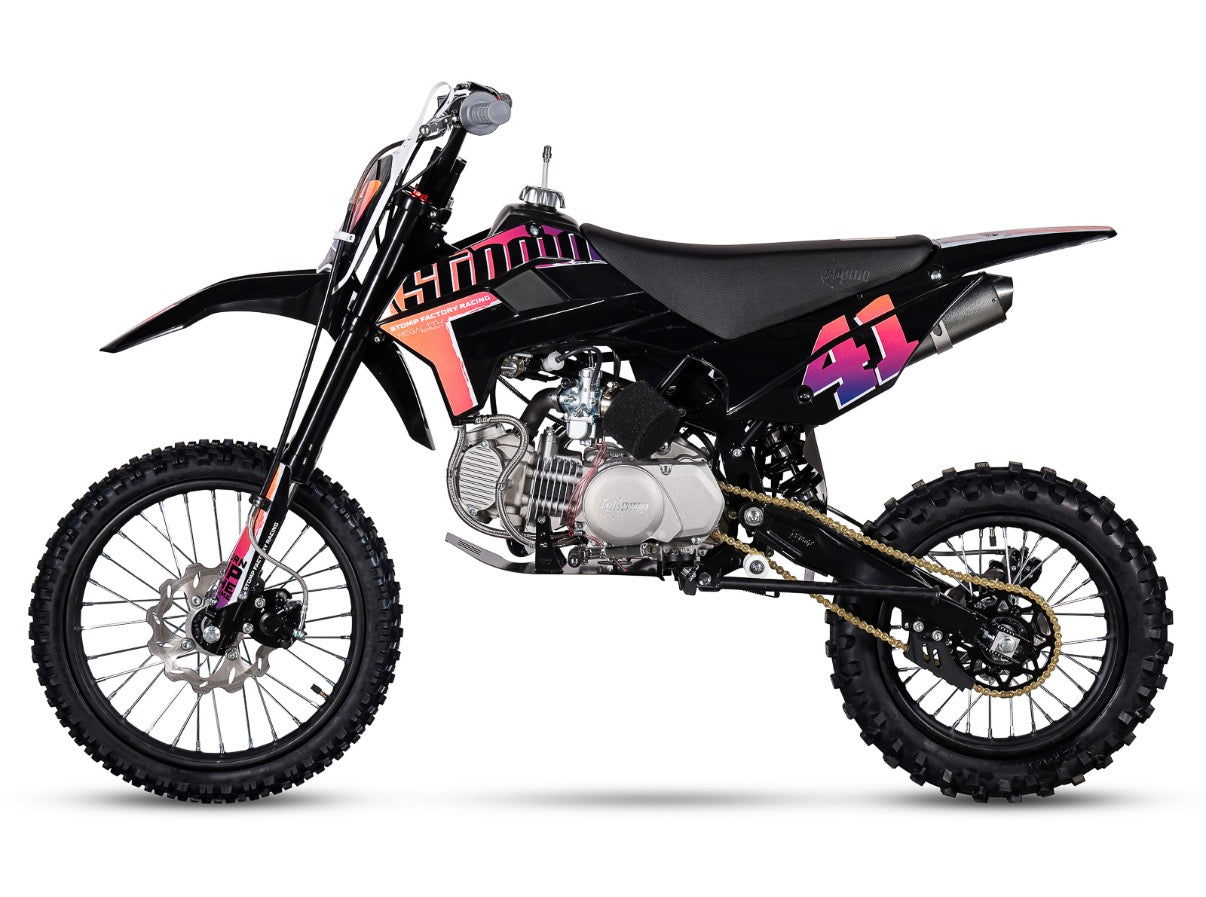

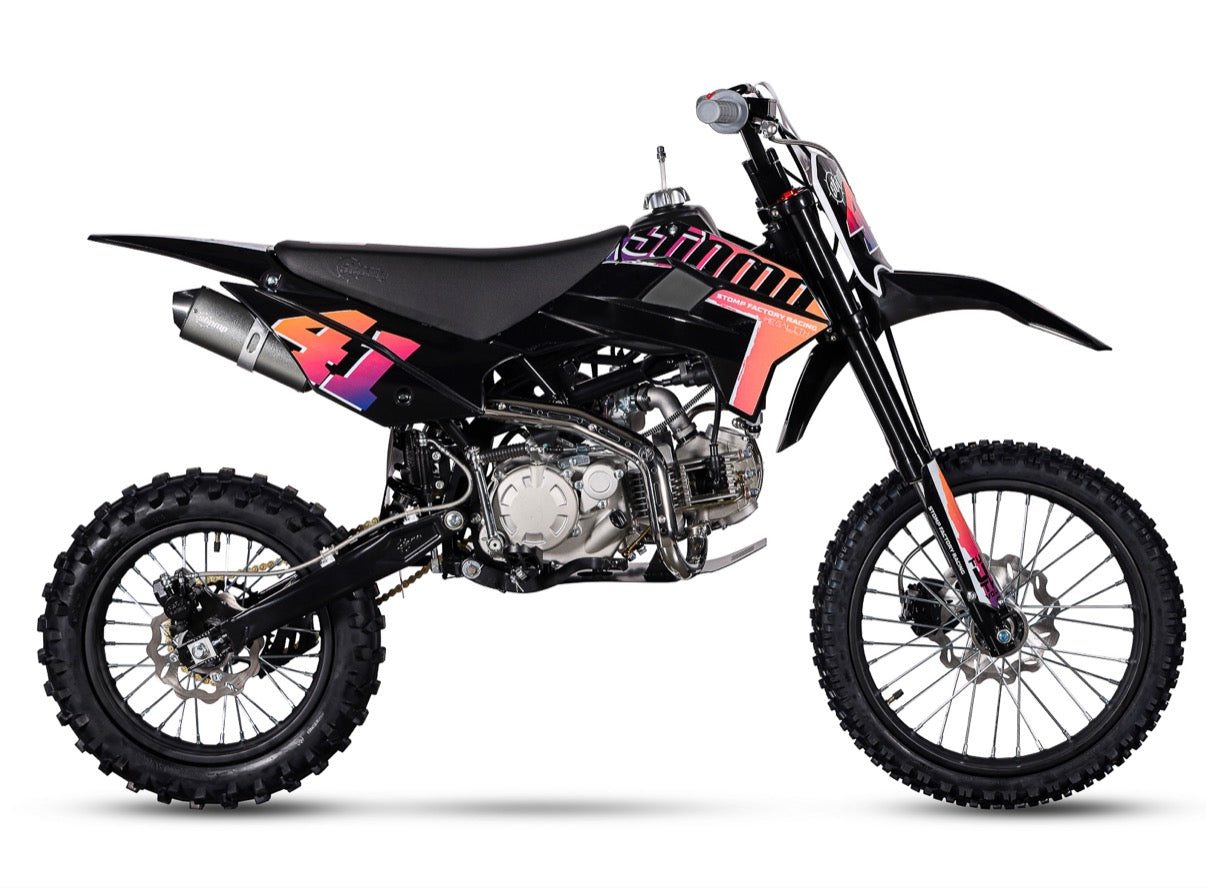

Stomp Z3-160 Pit Bike

155CC 4-STROKE. 17HP. 4-SPEED MANUAL. 17”/14” BIG WHEELS. RACE-SPEC CHASSIS. 🏁🔥

The Stomp Z3-160 is the most powerful pit bike in the Stomp range, bringing serious 155cc performance together with a purpose-built big-wheel chassis.

Powered by a Zhongshen 155cc engine producing approximately 17hp at the rear wheel, the Z3-160 is a substantial step up from the smaller 110cc and 140cc pit bikes.

It combines a start-in-gear 4-speed manual gearbox, 17”/14” SDG wheels, SDG2 heavy-duty cradle frame, USD front forks, nitrogen-filled piggyback rear shock and race-spec oil cooling.

With a dry weight of approximately 71kg, an 84cm seat height and a 15-stone rider weight limit, the Z3-160 is built for experienced riders who want serious performance from a compact pit-bike platform.

This isn’t an entry-level machine. It’s a proper performance pit bike designed for riders who already understand manual clutch control and want to step up.

⸻

⚡ Key Features

• 🔥 Zhongshen 155cc 4-stroke engine
• 💥 Approx. 17hp at the rear wheel
• ⚙️ Start-in-gear, all-up 4-speed manual gearbox
• 💨 26mm race carburettor
• 🧽 Double foam air filter
• 💦 Race oil cooler with braided steel hoses
• 🔑 Kick start
• 💥 735mm CNC-machined USD oil-filled forks
• 💥 290mm nitrogen-filled piggyback rear shock
• 🏗️ SDG2 heavy-duty cradle frame
• 💪 Revised lightweight TIG-welded 430mm swingarm
• 🛑 Hydraulic front & rear disc brakes
• 🛞 17” front / 14” rear SDG wheels
• 🏁 Innova-pattern MX tyres
• 💥 32mm OD mandrel-bent big-bore race pipe
• 💨 Alloy oval exhaust muffler
• 🧊 Race oil cooler with braided steel hoses
• 💪 Removable rear subframe
• 🔩 Bolt-on engine hangers
• 🕹️ Fold-back gear selector
• 🏁 Pro-Taper style minibike bars
• 💪 Forged alloy clutch & brake levers
• ⛽ 5.5L reinforced poly-resin fuel tank
• 📏 Approx. 840mm seat height
• ⚖️ Approx. 71kg dry weight
• 👤 Maximum rider weight: 15 stone

⸻

🔥 Zhongshen 155cc 4-Stroke Engine

At the heart of the Z3-160 is a Zhongshen 155cc single-cylinder 4-stroke engine.

The engine produces approximately:

17hp at the rear wheel

That makes the Z3-160 a serious jump in performance compared with the smaller 110cc and 140cc machines in the Stomp range.

The engine uses a 26mm race carburettor with a double foam filter, while the aluminium engine cases feature a shot-blast finish and Stomp branding.

The Z3-160 also benefits from a dedicated race oil cooler with braided steel hoses, helping manage engine temperatures during harder riding.

⸻

⚙️ Start-In-Gear 4-Speed Manual Gearbox

The Z3-160 uses a start-in-gear, all-up 4-speed manual gearbox.

This gives experienced riders full control over the engine and gearing.

The rider controls the gearbox through the foot selector and operates the manual clutch from the handlebar.

The 4-speed transmission allows the rider to:

• Select the appropriate gear for the terrain
• Control engine speed
• Change up through the gears
• Downshift when required
• Use engine braking
• Manage the engine’s power through gearing and throttle

The start-in-gear design also means the bike can be started with a gear selected when the clutch is operated correctly.

⸻

🕹️ Full Manual Control

The Z3-160 is designed for riders who are already comfortable with manual pit bikes.

With approximately 17hp at the rear wheel, this is not a bike we’d recommend as a first manual machine.

The larger engine and big-wheel chassis make the Z3-160 much more suited to riders who have already developed their clutch, throttle and gear-changing skills and are ready for substantially more performance.

If you’re still learning manual clutch control, a smaller machine such as the Stomp FXJ 110 Manual provides a much more manageable starting point.

⸻

🧊 Race-Spec Oil Cooling

One of the standout features of the Z3-160 is its race oil cooler with braided steel hoses.

The dedicated cooling system helps manage engine temperatures during harder riding and complements the larger 155cc engine.

The aluminium engine cases feature a shot-blast finish with Stomp branding, adding to the performance-focused appearance of the bike.

⸻

💥 735mm USD Front Forks

The front suspension uses extended 735mm CNC-machined USD oil-filled forks.

The upside-down fork design gives the Z3-160 the suspension hardware expected from a more performance-focused pit bike.

The forks are paired with drop-forged black-anodised triple clamps, creating a strong connection between the front wheel, suspension and frame.

⸻

🔧 Nitrogen-Filled Piggyback Rear Shock

At the rear is a 290mm nitrogen-filled piggyback shock with steel bushes.

The rear shock works with the revised lightweight 430mm TIG-welded swingarm, providing the Z3-160 with a substantial rear suspension platform.

The bike also features a removable rear subframe and bolt-on engine hangers, making the chassis practical to work on and maintain.

⸻

🛑 Hydraulic Disc Brakes

The Z3-160 comes equipped with hydraulic disc brakes front and rear.

The bike uses improved and revised lightweight brake master cylinders and calipers together with vented lightweight rotors.

Front

Hydraulic disc brake

Rear

Hydraulic disc brake

The braking system is designed around the performance and weight of the Z3-160.

As always, brakes should be checked before riding and maintained regularly.

⸻

🛞 17”/14” Big Wheel Setup

The Z3-160 uses a 17” front / 14” rear big-wheel configuration.

The wheels feature SDG hubs with steel rims, providing a strong foundation for the larger chassis.

The bike is fitted with durable Innova-pattern MX tyres, giving it the appropriate setup for suitable off-road riding.

The larger wheel combination also gives the Z3-160 a more full-size riding position compared with the smaller 14”/12” pit bikes.

⸻

🏗️ SDG2 Heavy-Duty Cradle Frame

The Z3-160 is built around the SDG2 heavy-duty cradle frame, designed specifically around the performance requirements of the bike.

The chassis incorporates:

• Heavy-duty SDG2 cradle frame
• Removable rear subframe
• Bolt-on engine hangers
• Revised 430mm TIG-welded swingarm
• Drop-forged black-anodised triple clamps
• 17”/14” SDG wheels

The result is a chassis designed around stiffness, control and durability rather than simply increasing engine capacity.

⸻

💨 32mm Big-Bore Race Exhaust

The Z3-160 uses an alloy oval exhaust muffler combined with a mandrel-bent 32mm OD big-bore race pipe.

The system is finished with a full-length alloy heat shield, providing additional protection around the exhaust system while completing the race-inspired appearance.

⸻

⛽ 5.5L Reinforced Fuel Tank

The Z3-160 features a 5.5-litre reinforced poly-resin fuel tank with an alloy CNC filler cap.

The tank is designed specifically around the Z3 chassis and gives the bike useful fuel capacity for longer riding sessions.

⸻

🏁 Stomp Race Equipment

The Z3-160 comes equipped with a long list of Stomp-specific components and race-inspired details.

These include:

• Pro-Taper style minibike bars
• Renthal-style soft rubber grips
• Forged alloy clutch & brake levers
• Fold-back gear selector
• Upgraded PRO footpegs
• 420 KMC chain
• Engraved alloy/nylon chain guide
• 420 16T front sprocket
• 420 41T rear sprocket
• Wrap-around CRF number board
• Front brake pipe tidy
• Revised firmer Stomp-logo seat
• Detroit high-impact polypropylene plastics
• Stomp Race graphics
• Stomp Race sponsor logos

It’s a detailed specification that reflects the Z3-160’s position at the top of the Stomp pit-bike range.

⸻

📏 Adult Big-Wheel Pit Bike Dimensions

The Z3-160 has an approximate:

Seat height: 840mm
Dry weight: 71kg
Maximum rider weight: 15 stone
Front wheel: 17”
Rear wheel: 14”
Fuel capacity: 5.5L

The 840mm seat height and 17”/14” wheels make rider fit particularly important.

We recommend choosing a bike based on rider height, weight, ability and experience, rather than age alone.

⸻

👤 Is The Stomp Z3-160 Right For You?

The Z3-160 is designed for riders who already have experience with manual pit bikes and want a serious step up in performance.

Want to learn manual clutch control?

The Stomp FXJ 110 Manual is a much more approachable starting point, with a compact 14”/12” chassis and smaller engine.

Want a powerful 140cc big-wheel bike?

The Stomp Z3-140 Big Wheel offers a performance-focused 140cc platform with 17”/14” wheels.

Want maximum Stomp pit-bike performance?

That’s where the Z3-160 comes in, with its 155cc Zhongshen engine, approximately 17hp at the rear wheel, race oil cooling, SDG2 chassis and 17”/14” big-wheel setup.

The Z3-160 is not recommended as a first manual pit bike. It is best suited to experienced riders who are already comfortable with clutch control, gears and the increased performance of a larger engine.

If you’re unsure which bike is right for you, contact CMW Bikes before ordering and we’ll help you choose based on rider height, weight, experience and intended use.

⸻

📦 What’s Included?

• Stomp Z3-160 Pit Bike
• User/assembly documentation
• Assembly tools where supplied

Assembly Options

Boxed: Self assembly required

Fully assembled: Assembly option available at checkout.

⸻

⚠️ Important Information – Off-Road Use

All vehicles supplied by CMW Bikes are intended for off-road/private-land use only unless specifically stated otherwise.

The Z3-160 is a high-performance mechanical petrol motorcycle and requires regular maintenance, inspection and correct setup.

Please ensure:

• Brakes, chain, tyres, bolts and controls are checked regularly
• Engine oil and oil-cooling system are maintained correctly
• Appropriate protective equipment is worn
• The rider is suitably experienced for a 155cc manual dirt bike
• The bike is checked before every ride
• The vehicle is used responsibly and lawfully
• Permission is obtained from the landowner before riding on private land

⸻

🛠️ Warranty Information

Petrol vehicles include a 30-day replacement parts warranty.

The warranty covers manufacturing faults only and does not cover normal wear and tear, misuse, accident damage or maintenance-related issues. CMW’s current Z3-160 listing confirms the 30-day replacement-parts warranty.

Warranty exclusions include:

• Chains, belts and split links
• Tyres, tubes and wheels
• Brake components
• Clutches and pull starts
• Fairings and bodywork
• Spark plugs and similar service items
• Other parts subject to normal wear and tear

Customers may be required to provide photographs/videos of faults and fit replacement parts themselves where appropriate.

Technical guidance can be provided.

Nothing in these terms affects your statutory rights under UK consumer law.
