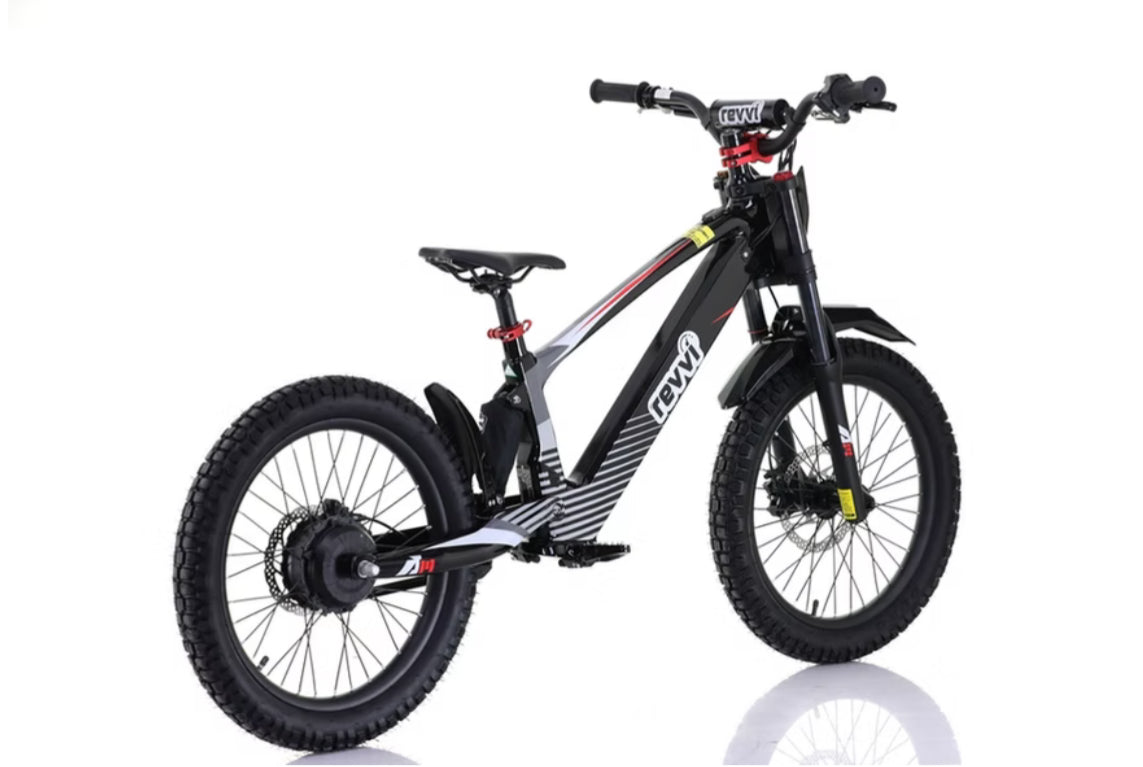

Revvi 20 Inch Key Features
- Charge time: Only 2h 30mins.
- Removable battery fully enclosed within the bikes metal frame that can be changed in around 1 minute! The battery has a metal protection plate that is held on by 2 bolts to protect the battery from damage.
- The bike is supplied with 1 x battery, You can choose to purchase extra batteries.
-
Each battery has a built in charging port, it can be charged in the bike or away from it.
- Suspension forks – 100mm travel - Adjustable compression and pre-load.
- Air rear shock - Max 140psi – 30mm travel. You can release pressure from the rear shock to make it softer with slowerrebound.
- Brushless 36V 800w Hub motor
- Handlebar pad.
- Large rubber air filled off road 20" 2.5 tyres..
- Battery range
Slow speed - Approx 1h 30mins constant use
Medium speed - Approx 1h constant use
Fast speed - Approx 35mins constant use
Please note battery range will vary depending on the speed setting, rider weight and riding conditions.
Slow speed - Approx 10mph
Medium speed - Approx 16mph
Fast speed - Approx 22mph
Please note speeds stated may vary depending on riding conditions and rider weight.
- Full grip twist and go throttle with battery level display.
- Alloy brake levers - Adjustable reach.
- Hydraulic front and rear disc brakes.
- Light weight aluminium frame.
-
Aluminium handlebars.
- Aluminium foldable spring loaded MX style foot pegs.

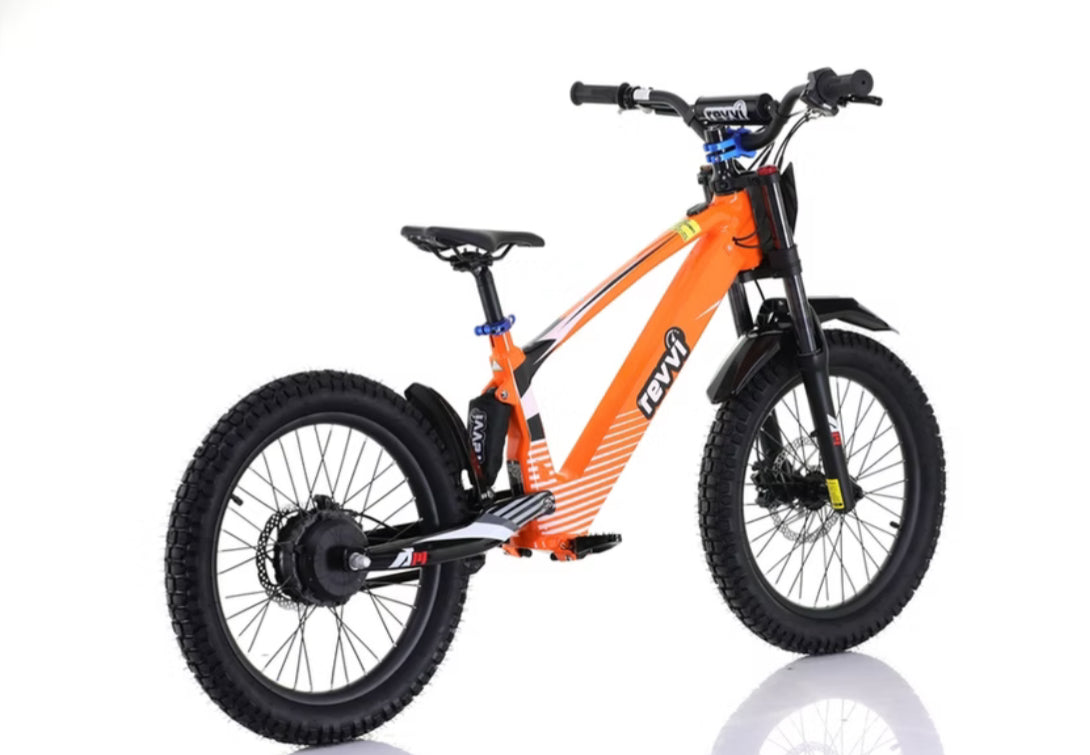

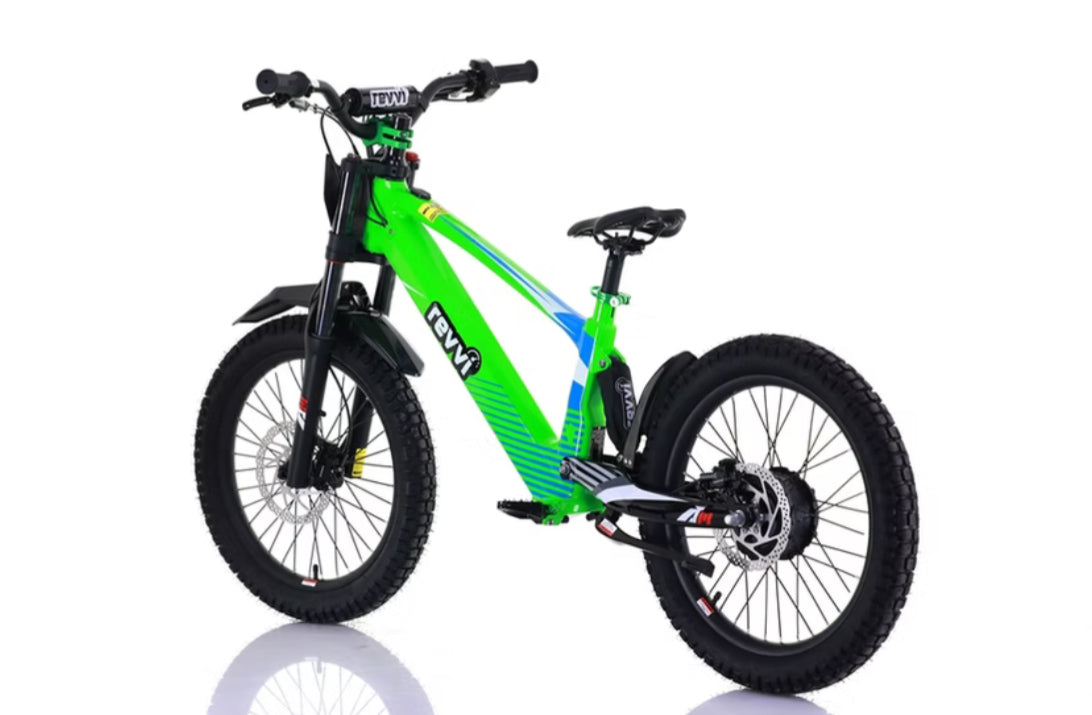

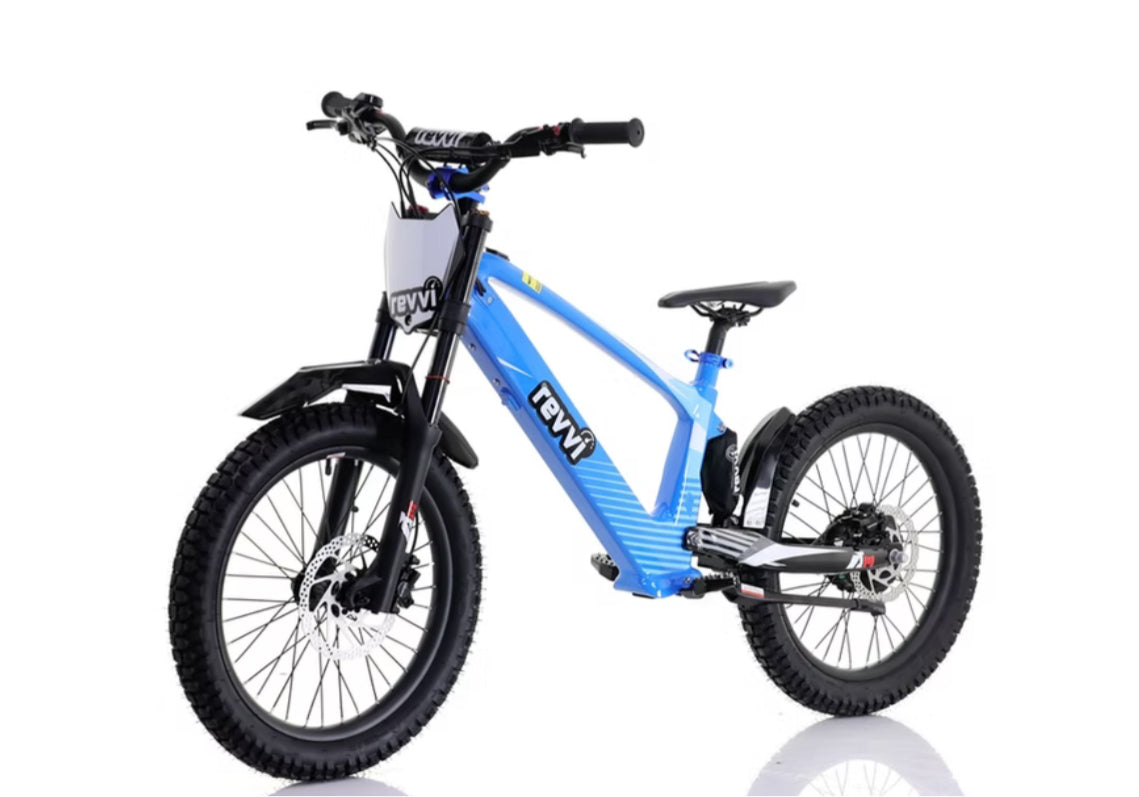

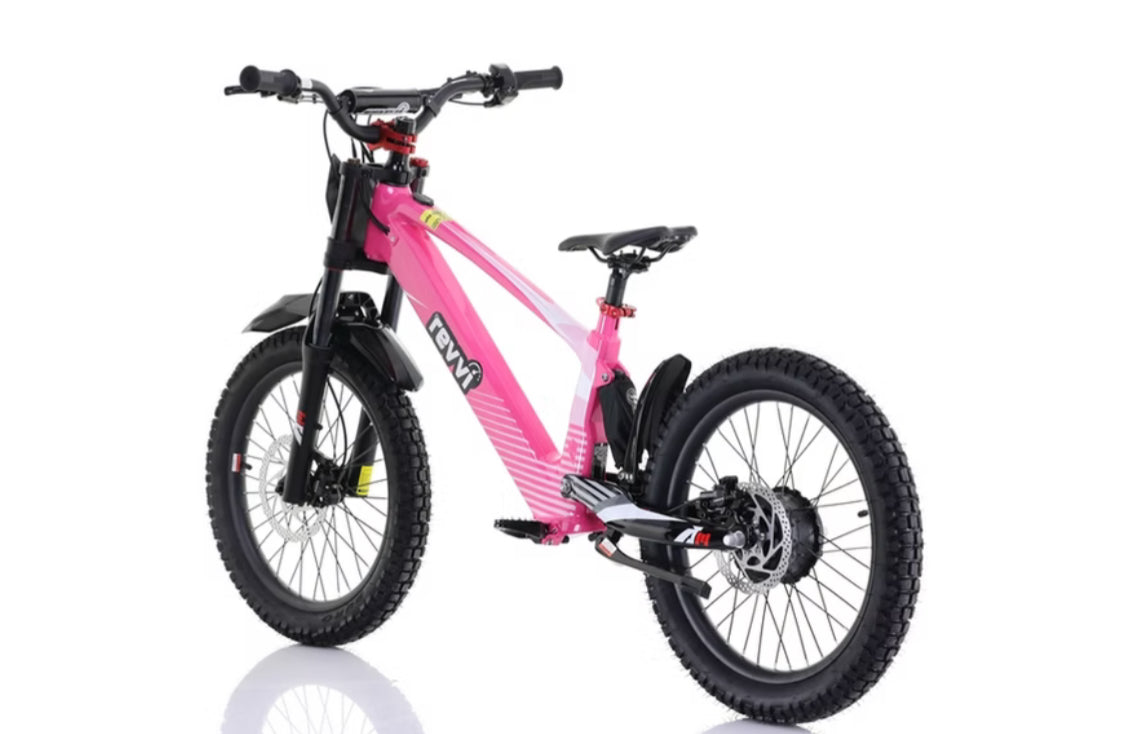

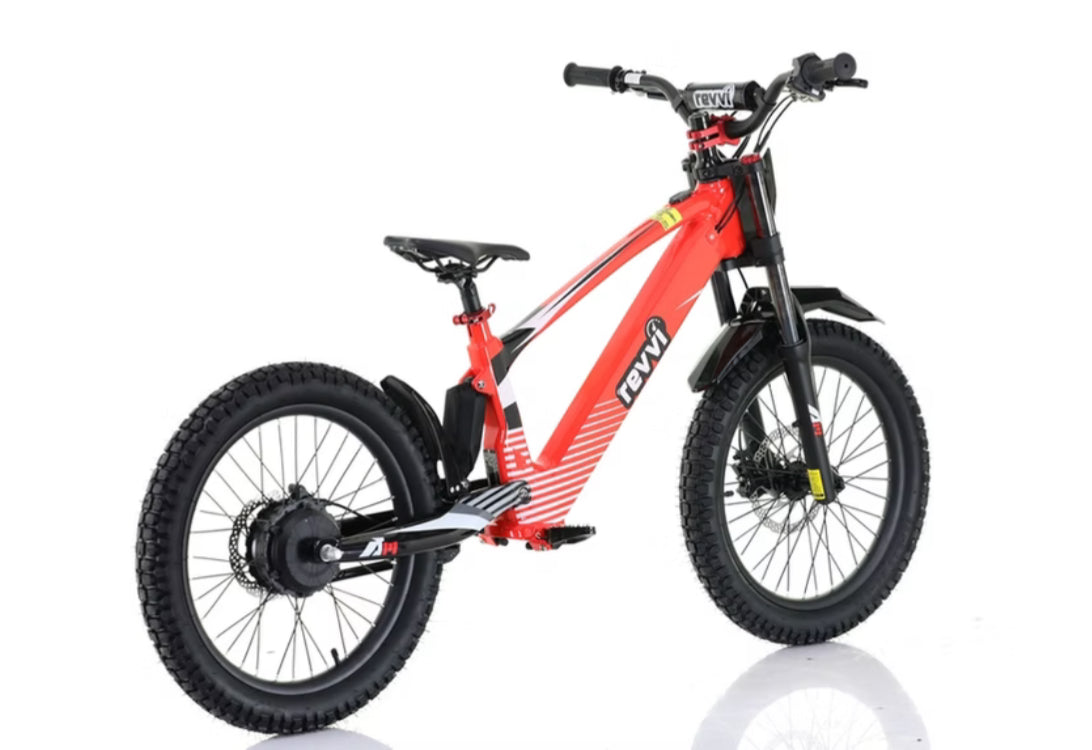

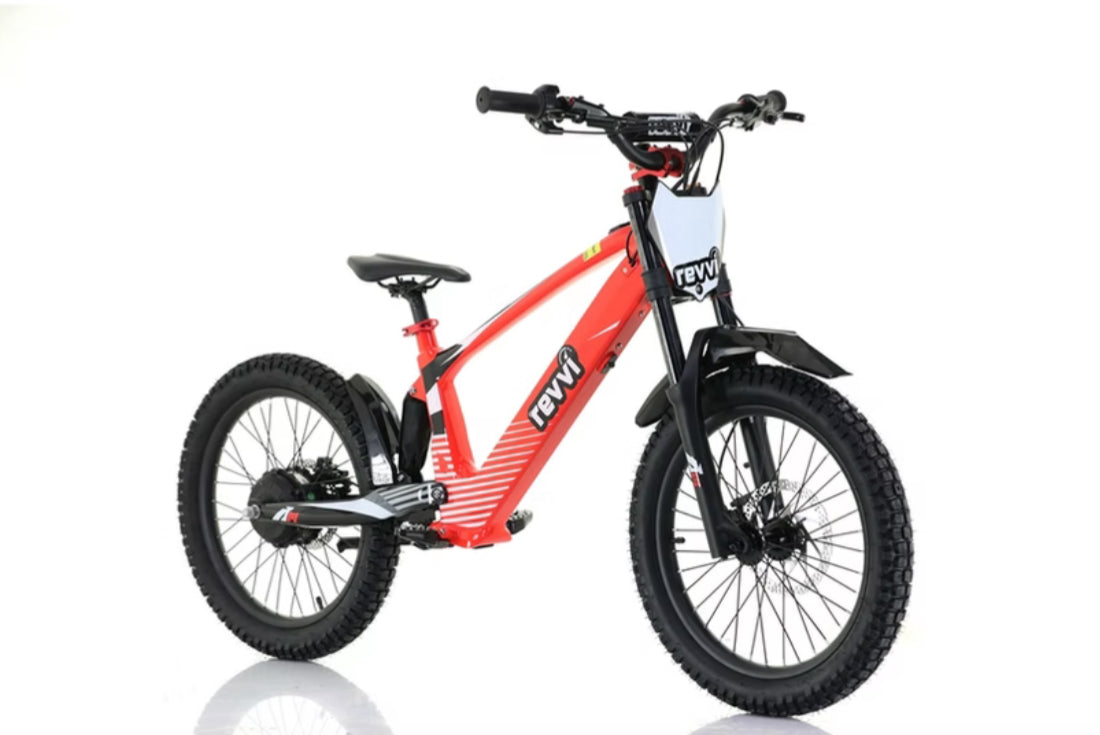

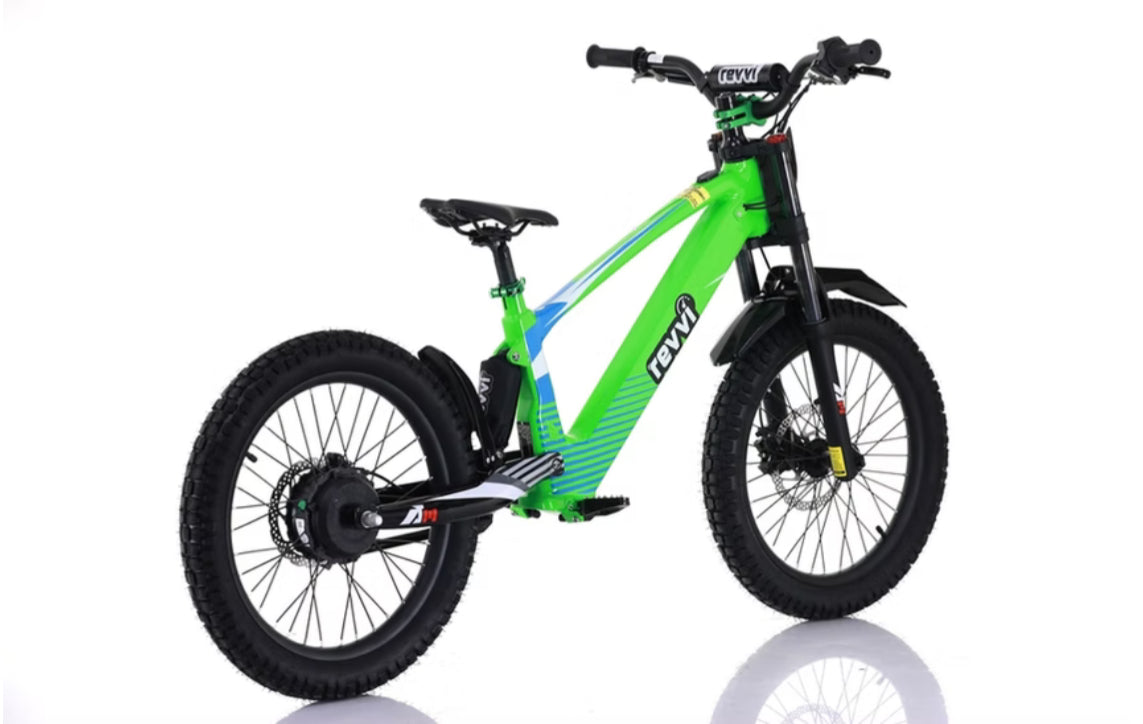

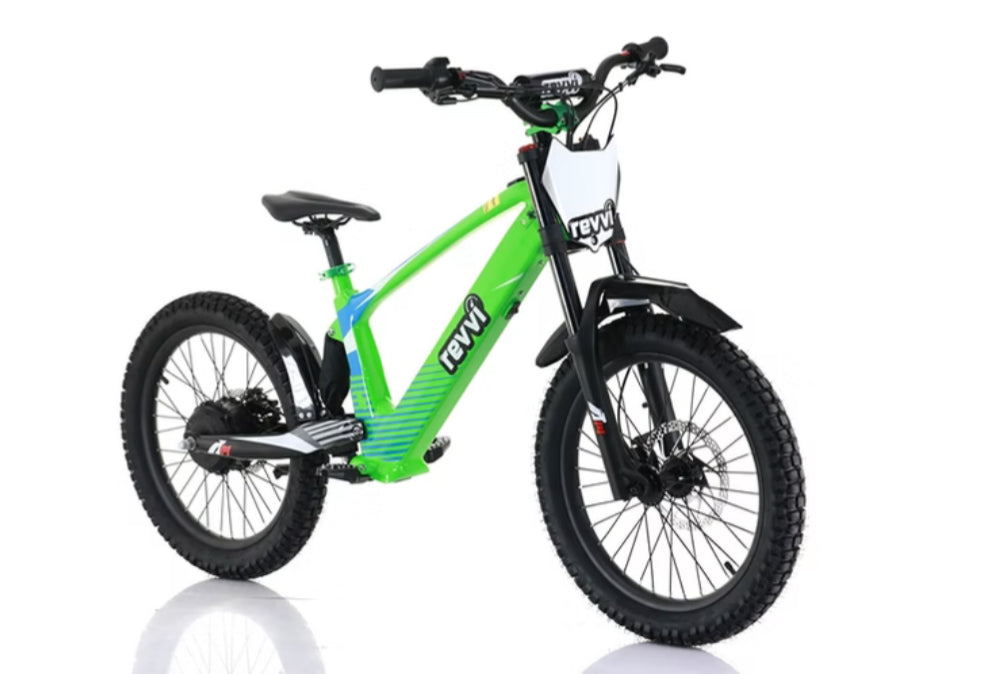

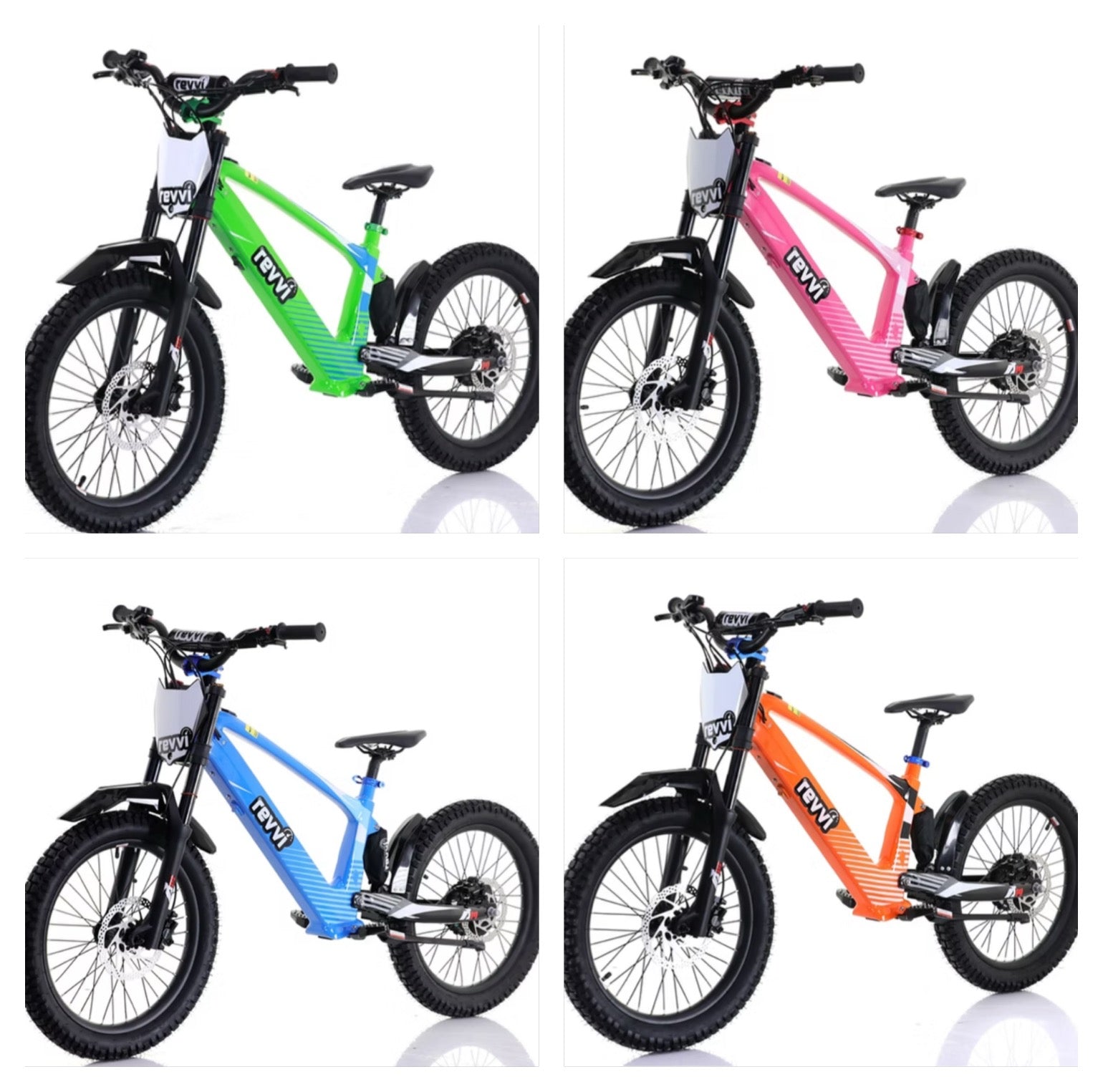

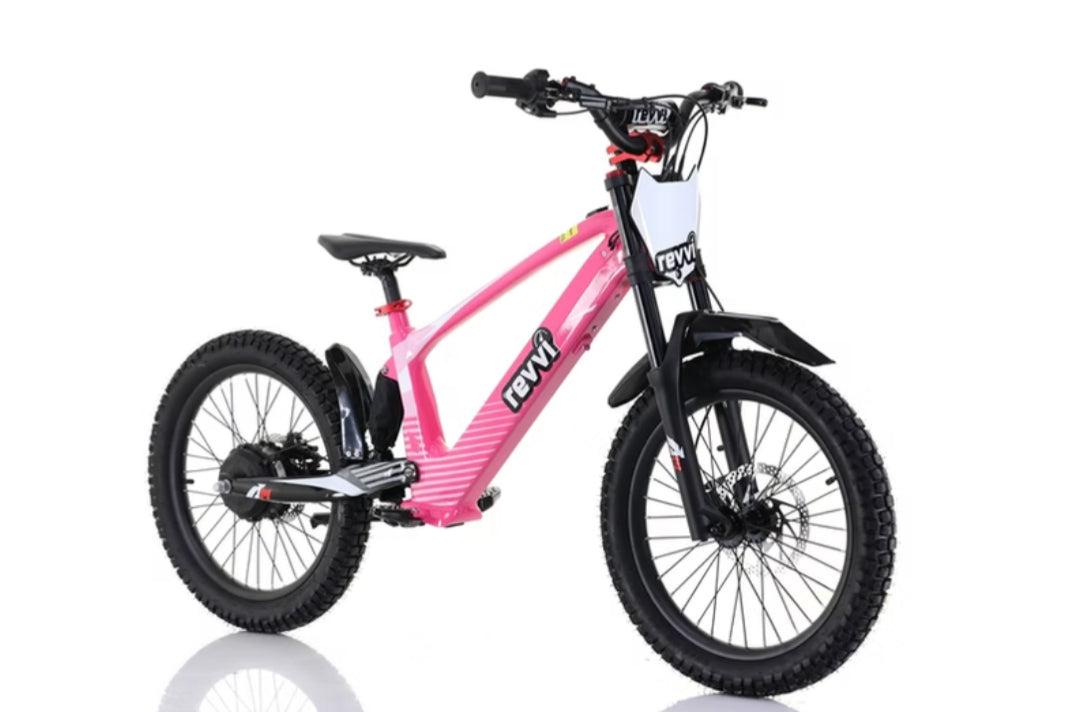

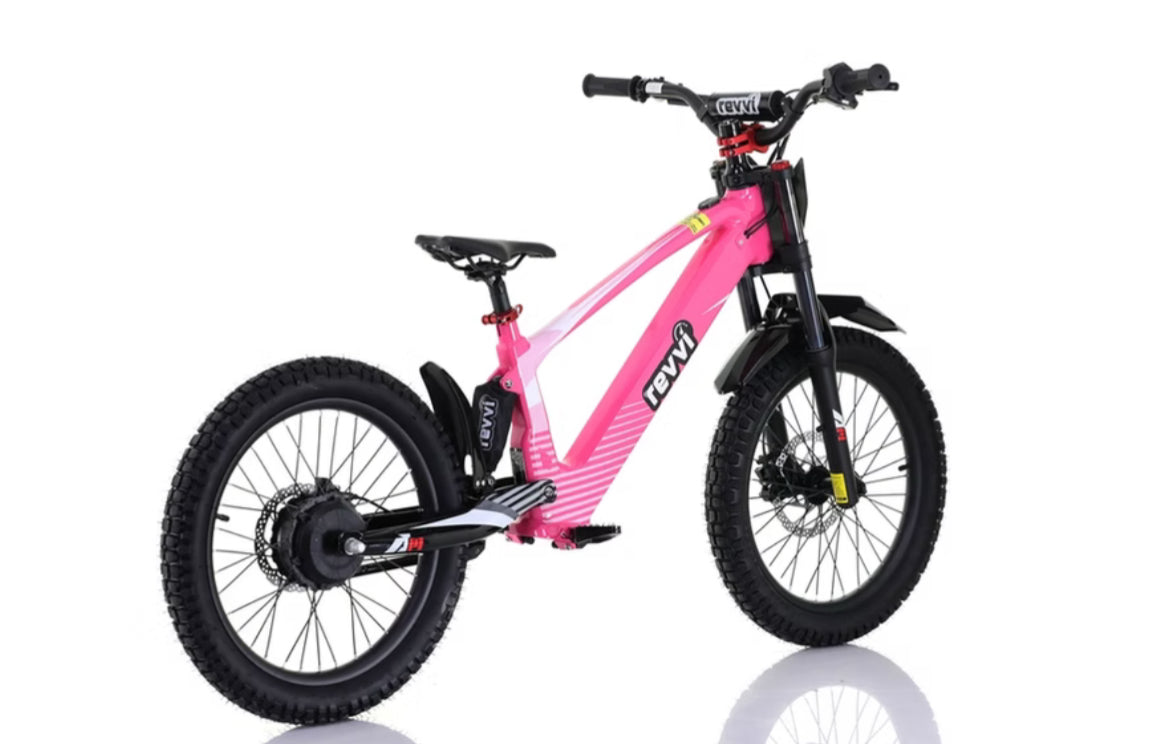

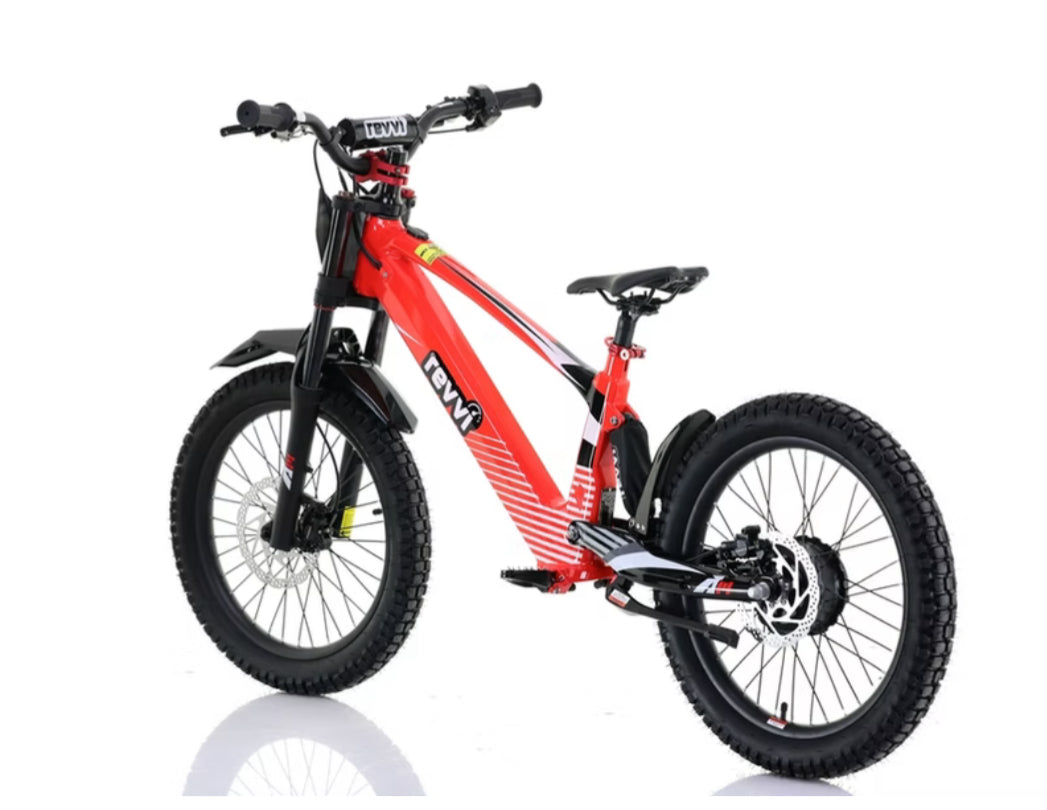

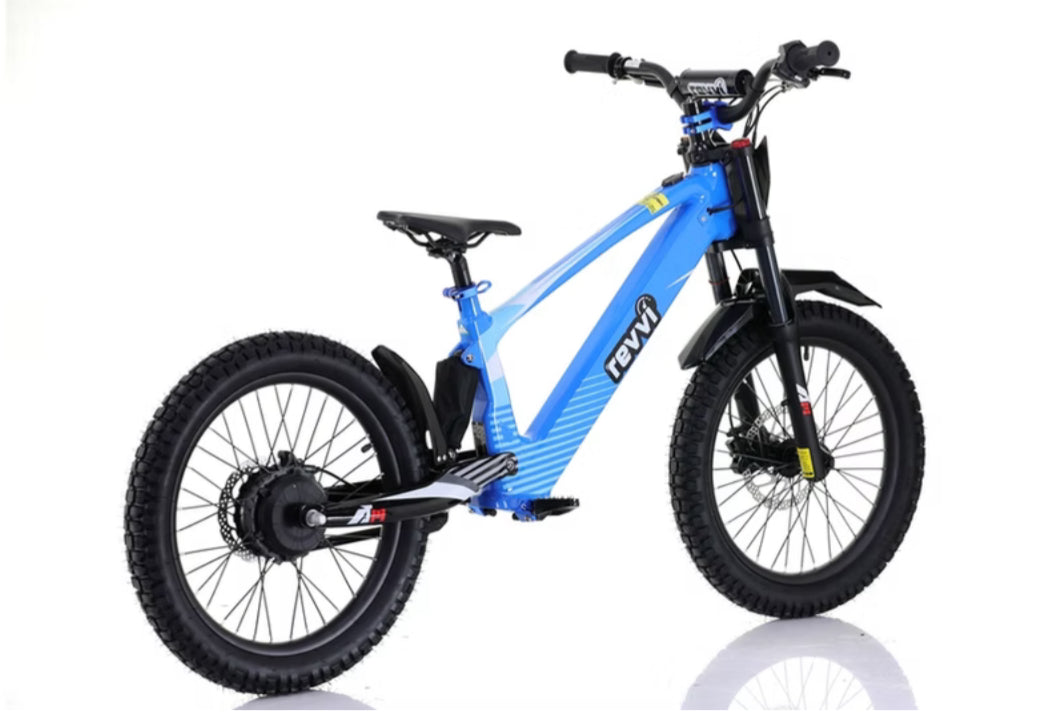

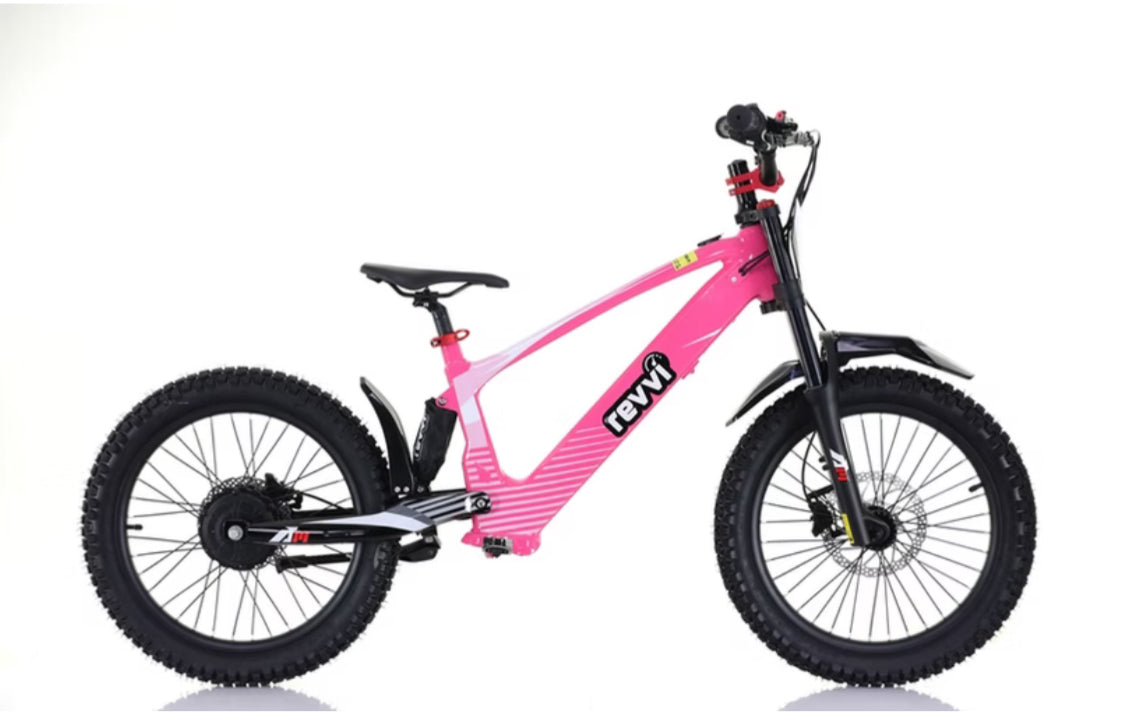

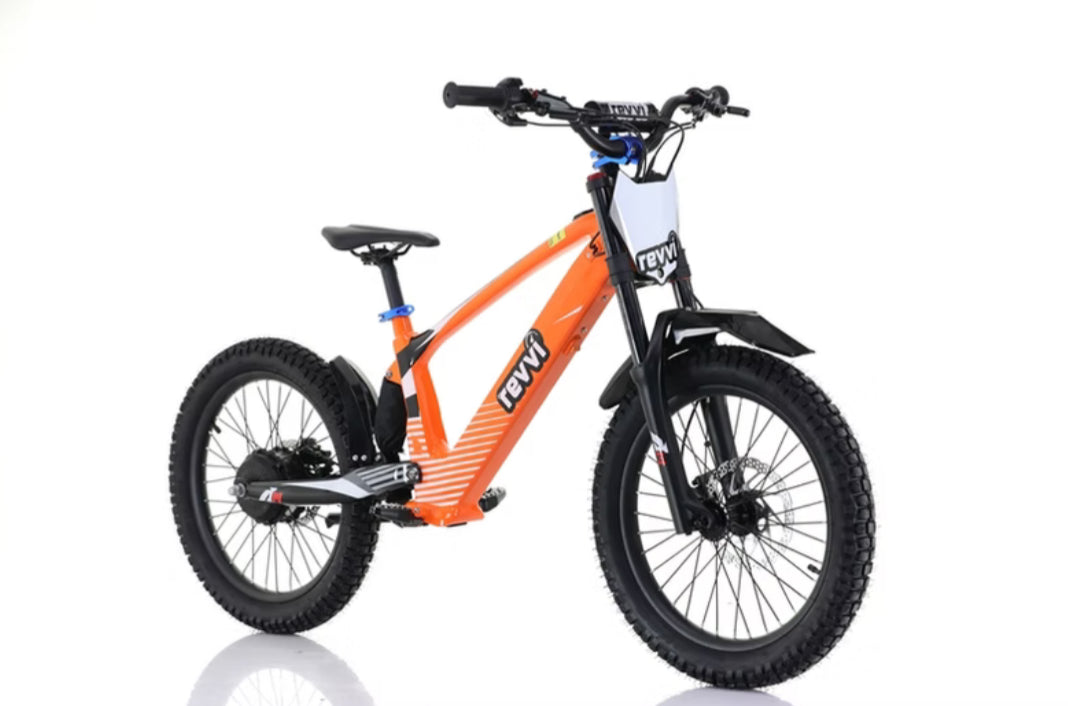

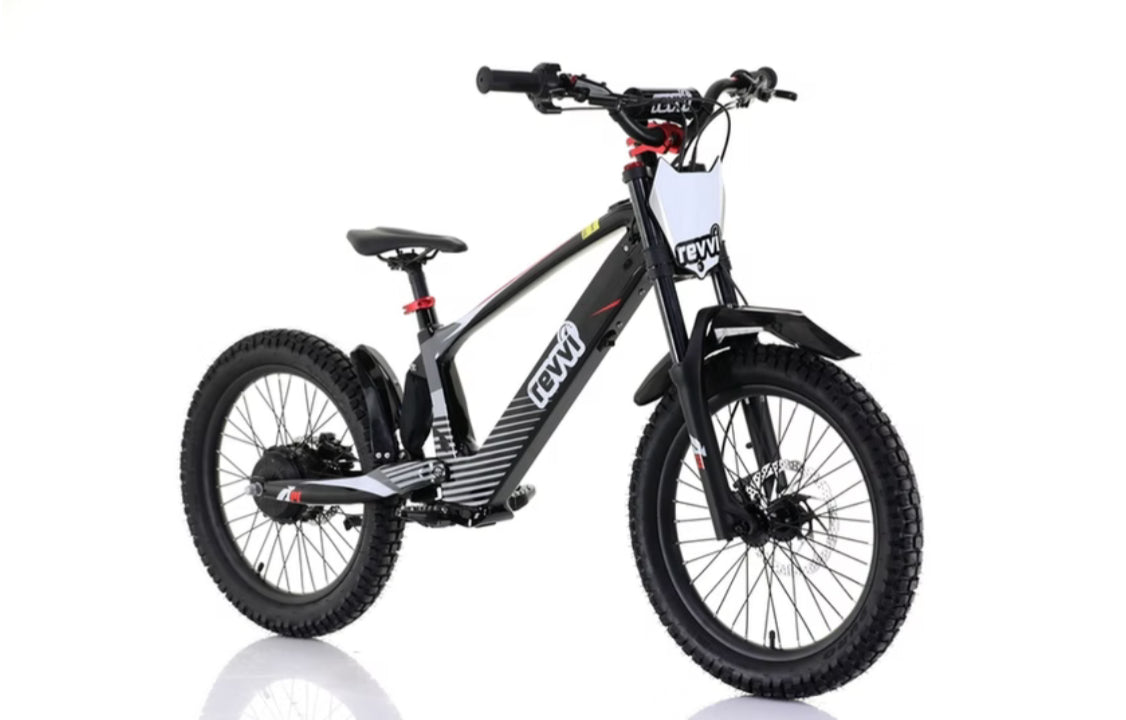

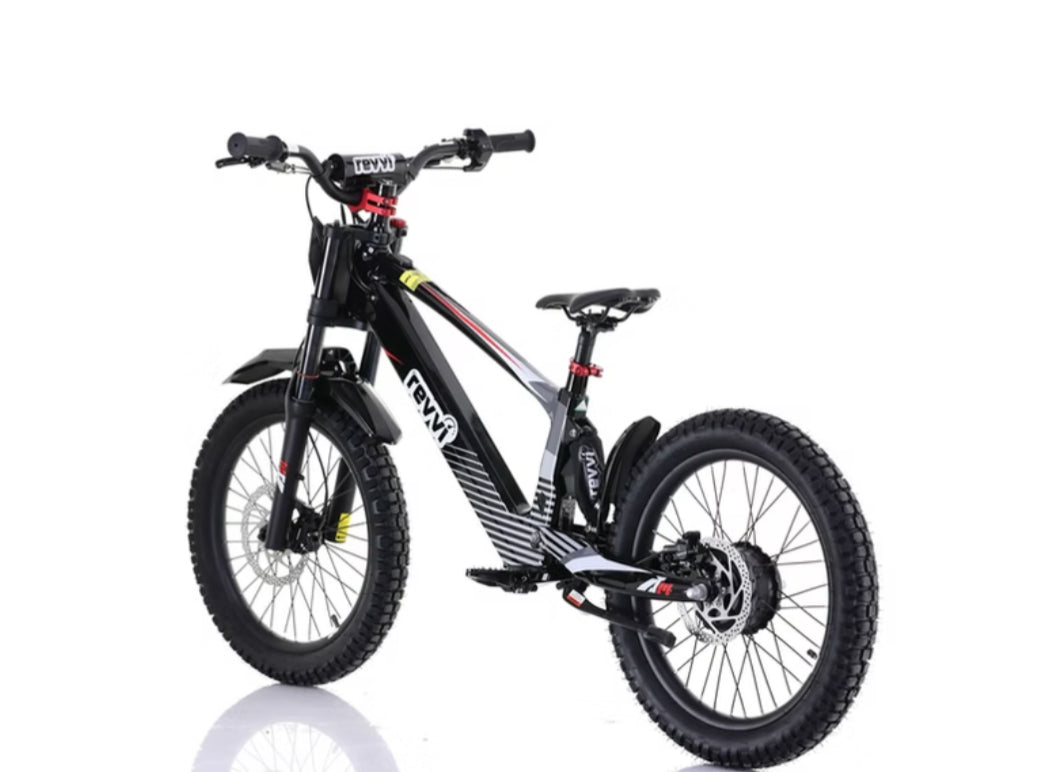

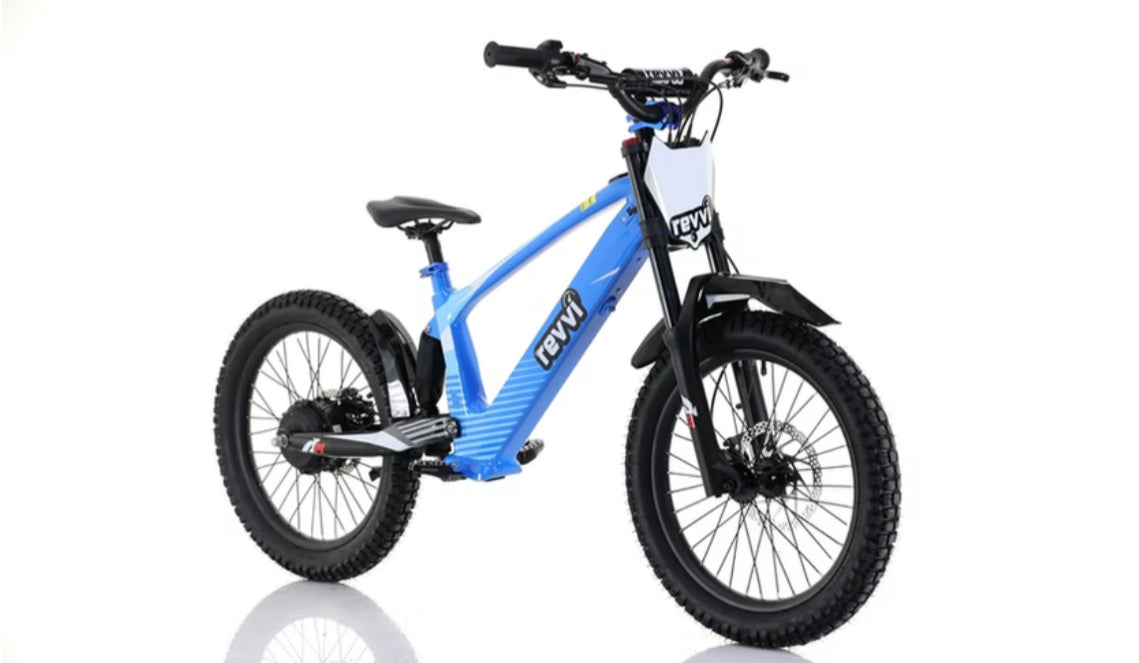

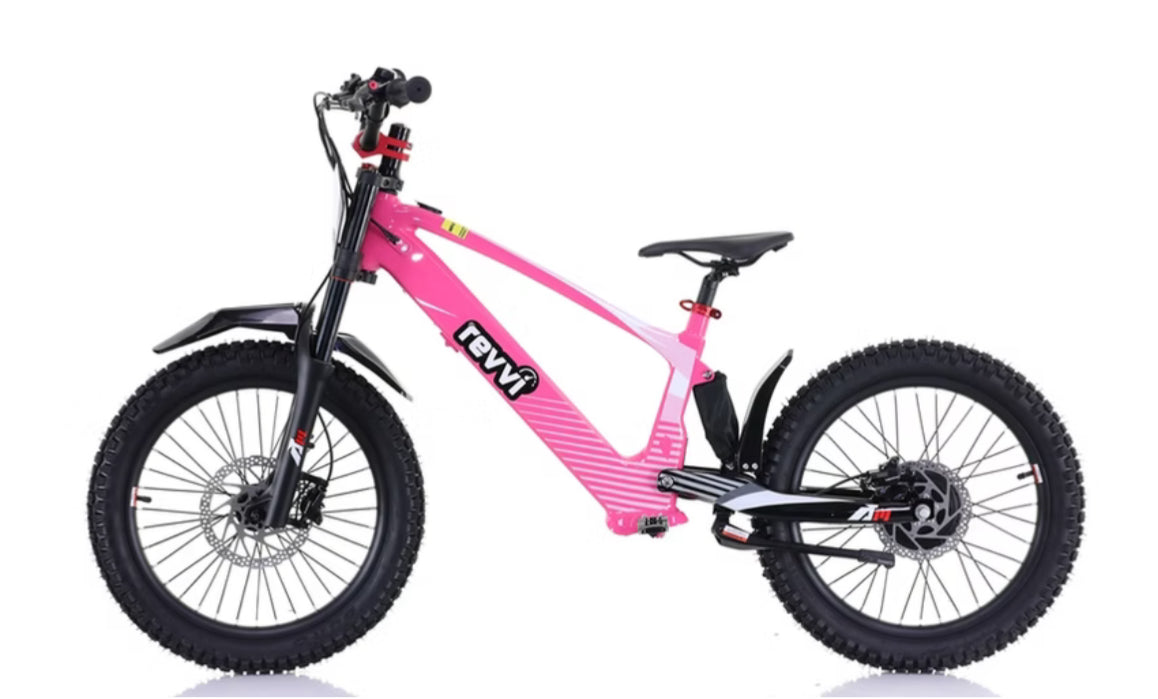

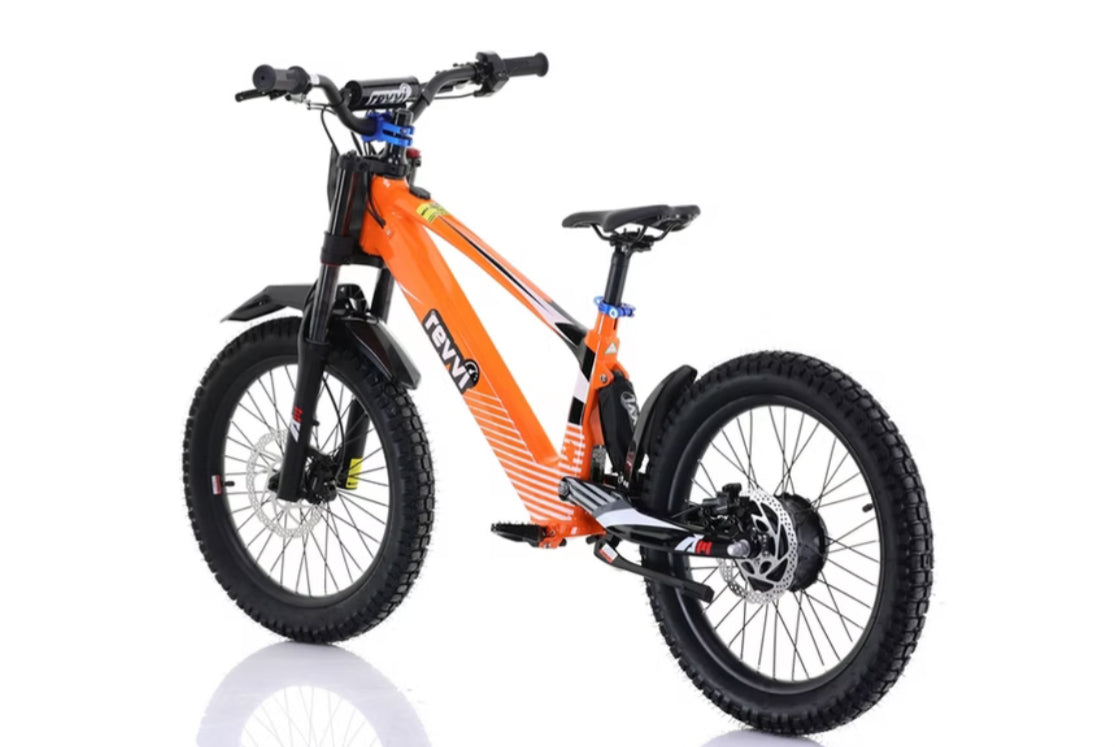

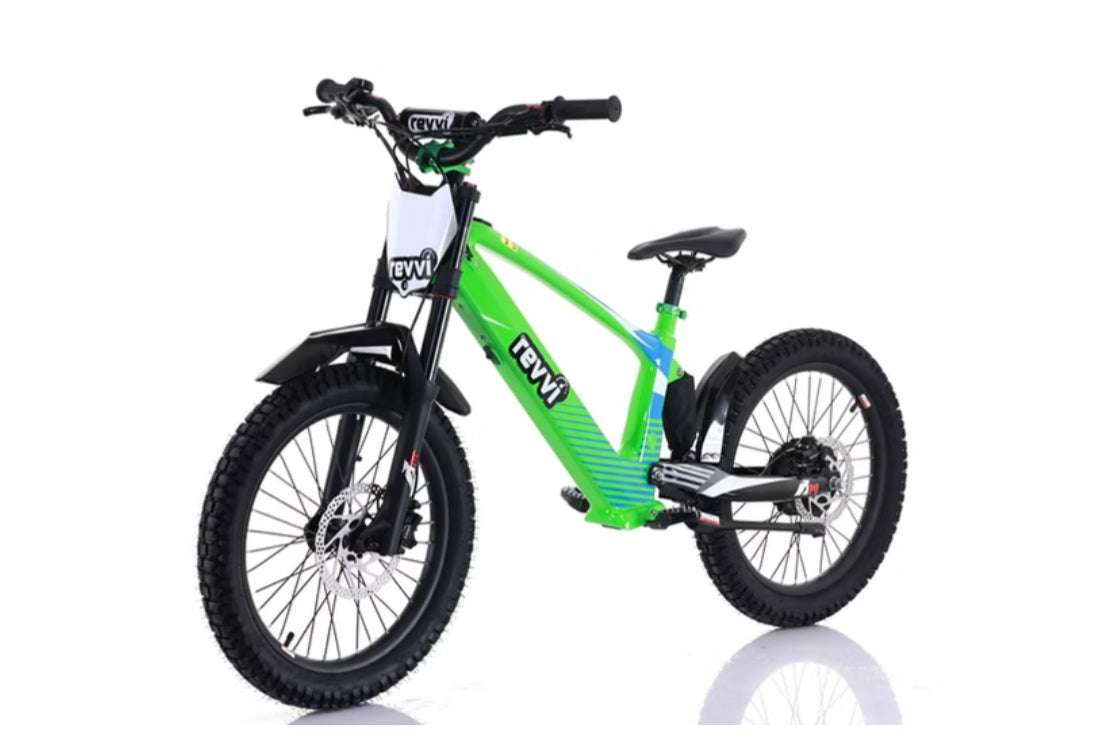

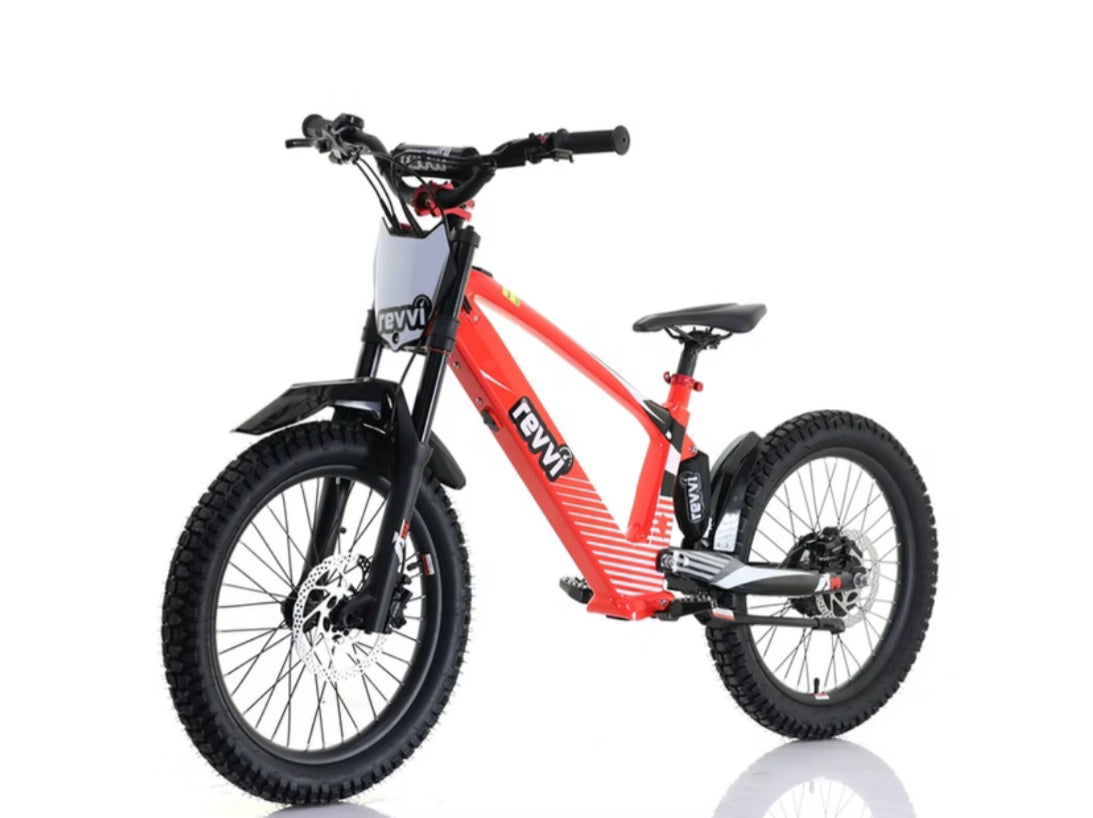

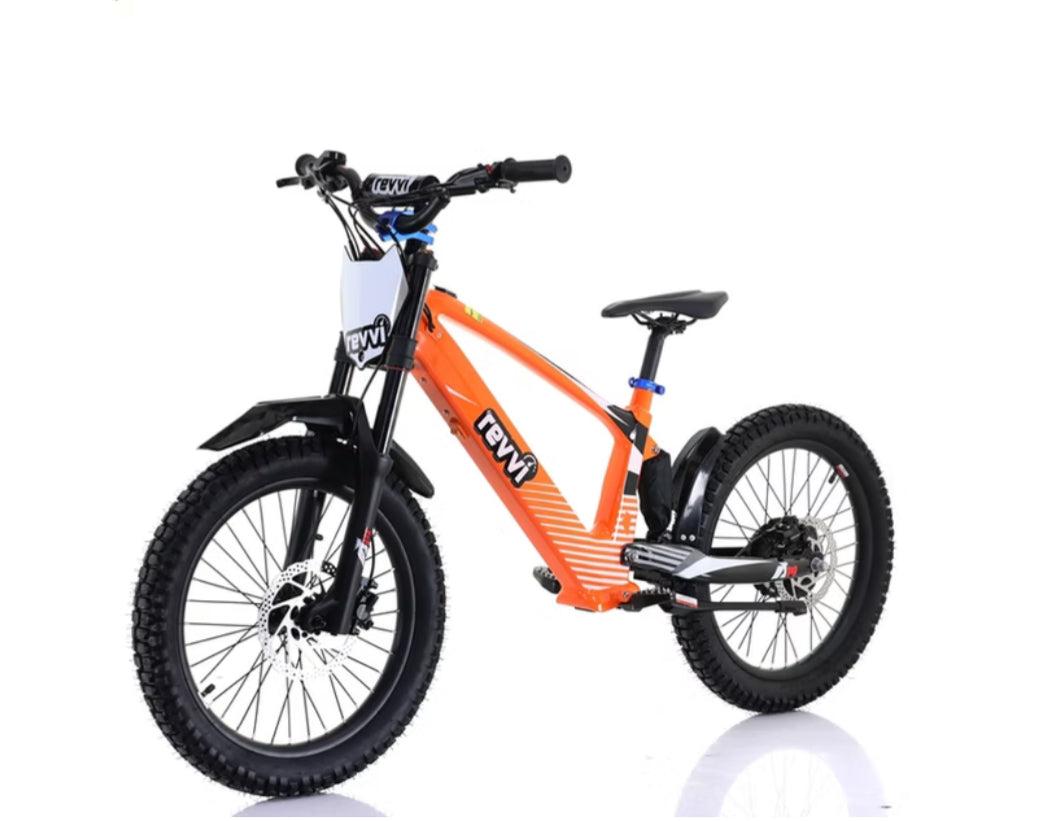

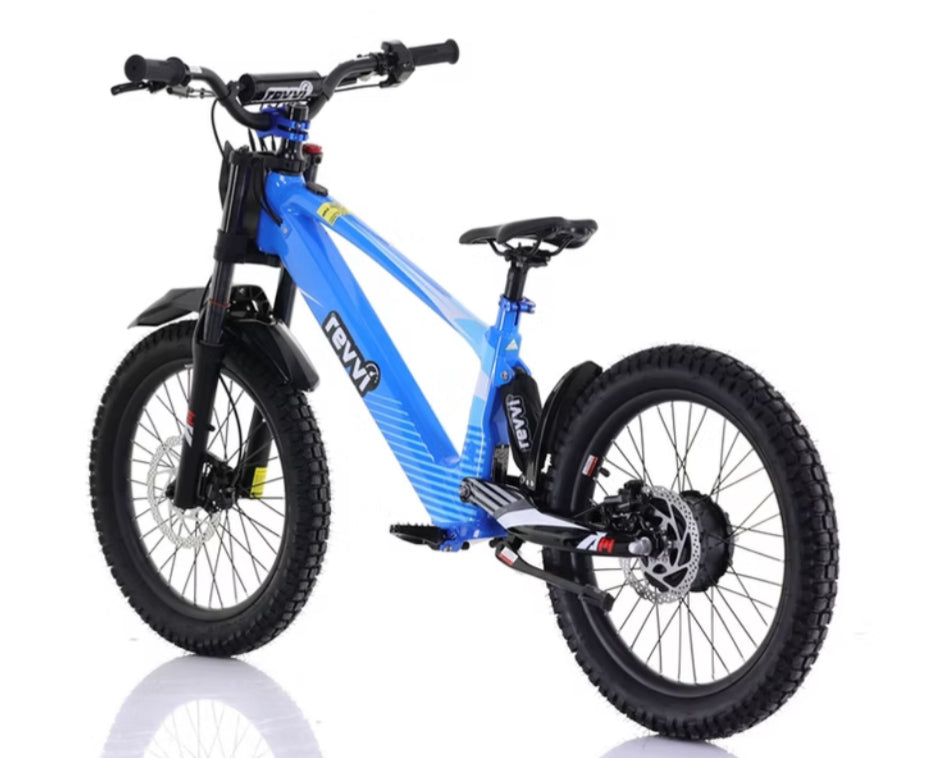

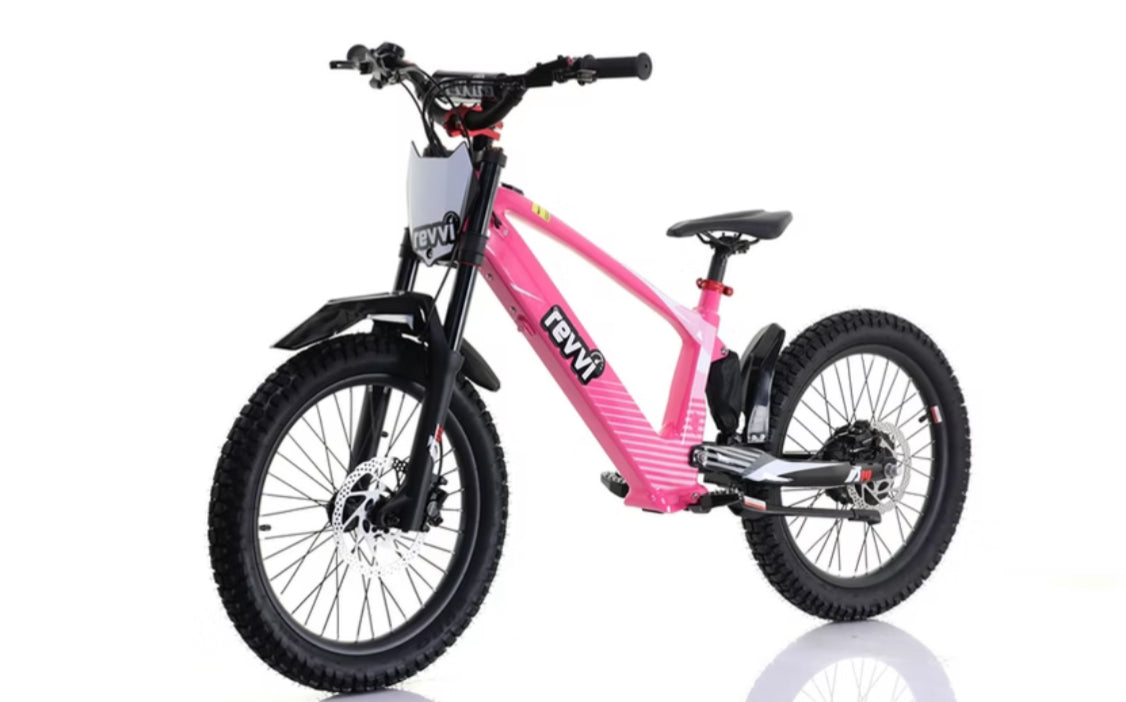

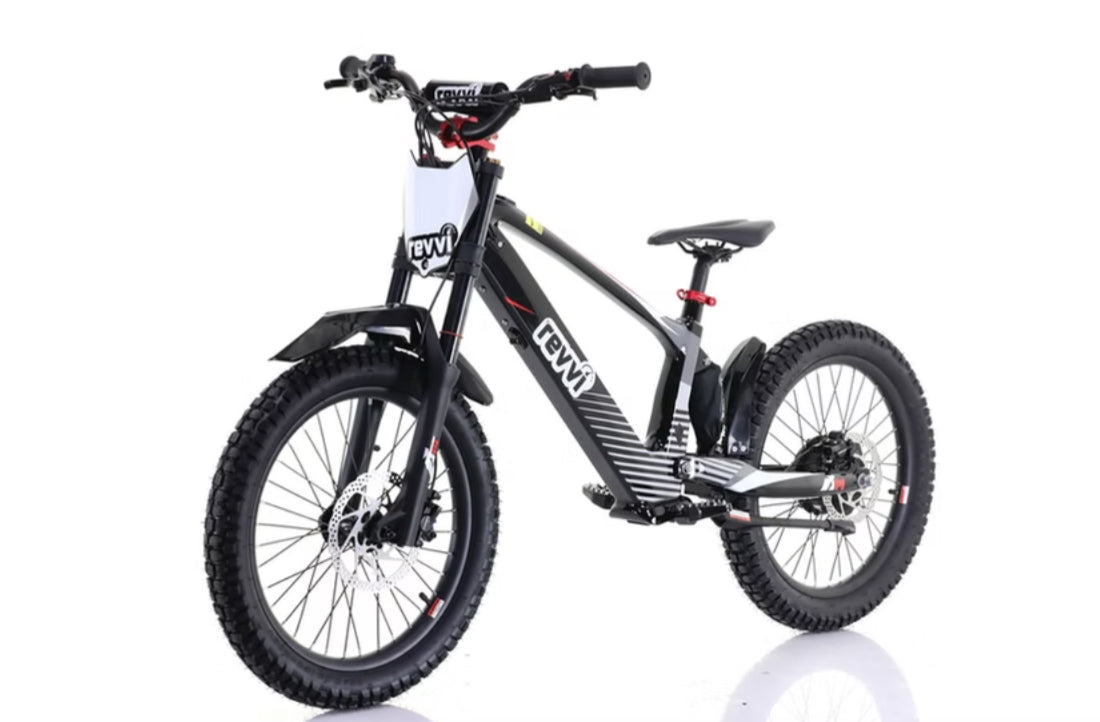

- Frame available in Red, Blue, Black, Green, Pink and Orange!
- Revvi graphics!
- MX style aluminium rear swing arm.
- External charge port for easy charging without battery removal.
- Lightweight metal spoked 20" wheels.
- Anodized handlebarclamp.
- Anodized quick release seat clamp.
- Heavy duty adjustable seat.
- 6 months parts warranty.
Please see terms and conditions for more info.
Adjustable handlebar height, allows you to raise the handlebars by 30mm in 10mm increments as the rider grows
| Motor |
800w - Brushless Hub Motor |
| Speed Settings |
Low - 10mph/ Mid 16mph/ High - 22mph |
| Battery |
36v 7.5ah Lithium (removable) |
| Battery Range |
low - 1hr30mins/ Mid - 60 mins/ High - 35mins (constant use) |
| Charge Time |
2Hr 20 minutes |
| Frame |
Aluminium frame and swing arm |
| Front Forks |
Hydraulic suspension - 100mm travel |
| Rear Shock |
Air shock 140psi - 30mm travel |
| Handlebar |
Alloy - Height Adjustable up to 30mm |
| Grips |
Rubber |
| Tyres |
20" knobbly tire |
| Wheels |
20" Alloy spoked Rim |
| Drive |
Hub Drive |
| Bike Weight |
22kg |
| Max Rider weight |
65kg/10.2 stone |
| Warranty |
6 Months (Parts only) |
